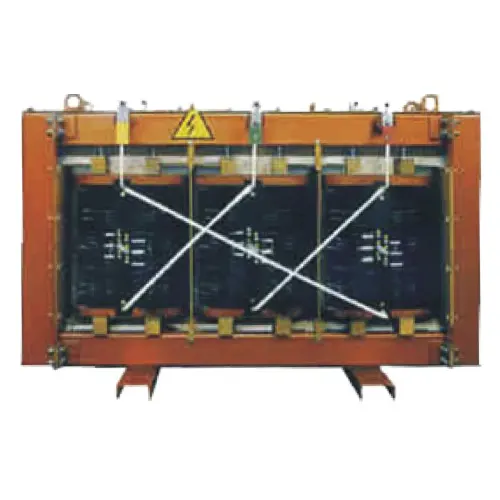

Epoxy Cast Transformer with Amorphous Alloy

DAYA  Epoxy Cast Transformer with Amorphous Alloy Details

The heat capacity of the cast molding winding is large, so the epoxy cast resin dry type transformer has a strong overload capacity; no maintenance is required, so it is widely favored by people. With the development of the world economy, people's demand for resin dry-type transformers will increase rapidly.

An amorphous metal transformer ( AMT) is a type of energy efficient transformer found on electric grids. [1] The magnetic core of this transformer is made with a ferromagnetic amorphous metal . The typical material ( Metglas) is an alloy of iron with boron, silicon, and phosphorus in the form of thin (e.g. 25 µm) foils rapidly cooled from melt.

DAYA Epoxy Cast Transformer with Amorphous Alloy  Parameters

1, Amorphous alloy is a new type of strip material, amorphous alloy material does not exist crystal structure, magnetization power is small, high resistivity, so the eddy current loss is small, with this material as the core can produce a new type of energy-saving transformer, is the ideal product for the renewal of distribution network.

2, Strong corrosion resistance: amorphous alloy core is fully sealed by resin and high temperature resistant silica gel pad to effectively prevent corrosion and amorphous alloy fragments falling off, so as to effectively protect the core and coil.

3, Iow noise: in order to reduce the noise of the product operation, select reasonable flux density in the product design, improve the structure of the core and coil in the product processing, the use of special noise reduction materials, amorphous alloy dry transformer noise is far lower than the gb JB/T10088 requirements.

4, Short circuit resistance: the product adopts three-phase five-column and three-phase three-column structure, the iron core is protected by frame structure, and the structure is tight and reasonable. The high pressure coil is rectangular and segmented cylindric, made of polyurethane enameled wire and double glass fiber wrapped flat wire. The whole coil is poured into one body by epoxy resin vacuum pressure, which can completely eliminate bubbles in the coil. Ensure stable insulation performance and small partial discharge. The low voltage coil is divided into wire wound and foil structure to increase the transformer’s ability to withstand short circuit.

5, low temperature rise, long service life: product temperature rise is low, heat dissipation ability is strong, in forced air cooling conditions can be 130% of the rated load operation. Optional temperature control and protection system with perfect performance can provide reliable guarantee for transformer safe operation.

6,Transformer coupling group adopts Dyn11 to avoid the influence of high harmonics. Strong resistance to unbalanced load, significantly im

DAYA Epoxy Cast Transformer with Amorphous Alloy  FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
