0.6/1 kV Multi-core cables unarmoured with aluminum conductor

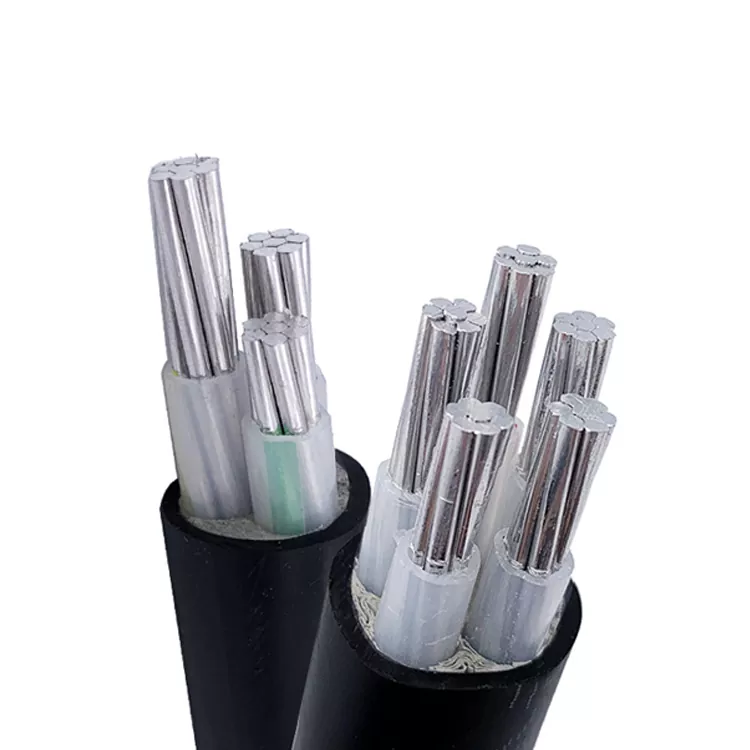

  • 0.6/1 kV Multi-core cables unarmoured with aluminum conductor - 0 0.6/1 kV Multi-core cables unarmoured with aluminum conductor - 0

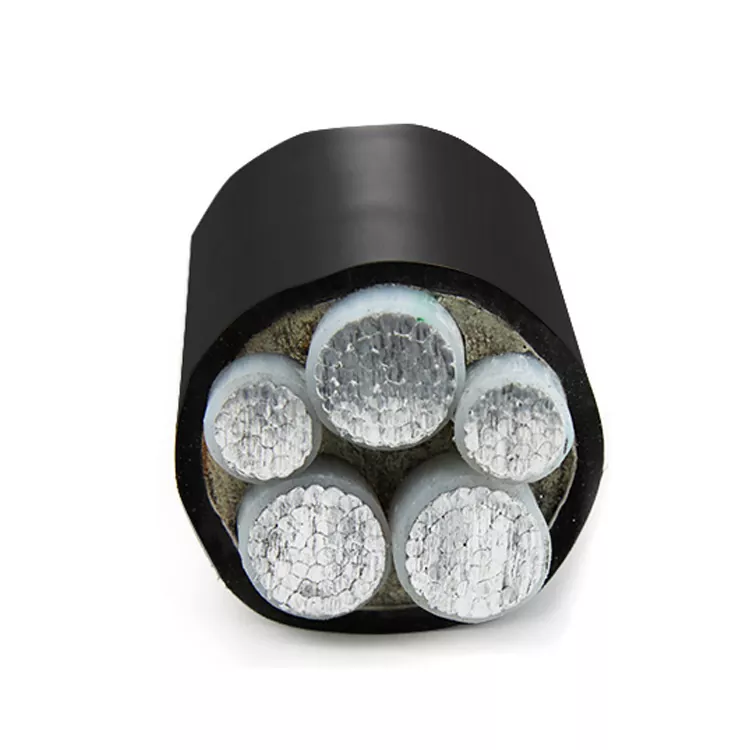

  • 0.6/1 kV Multi-core cables unarmoured with aluminum conductor - 1 0.6/1 kV Multi-core cables unarmoured with aluminum conductor - 1

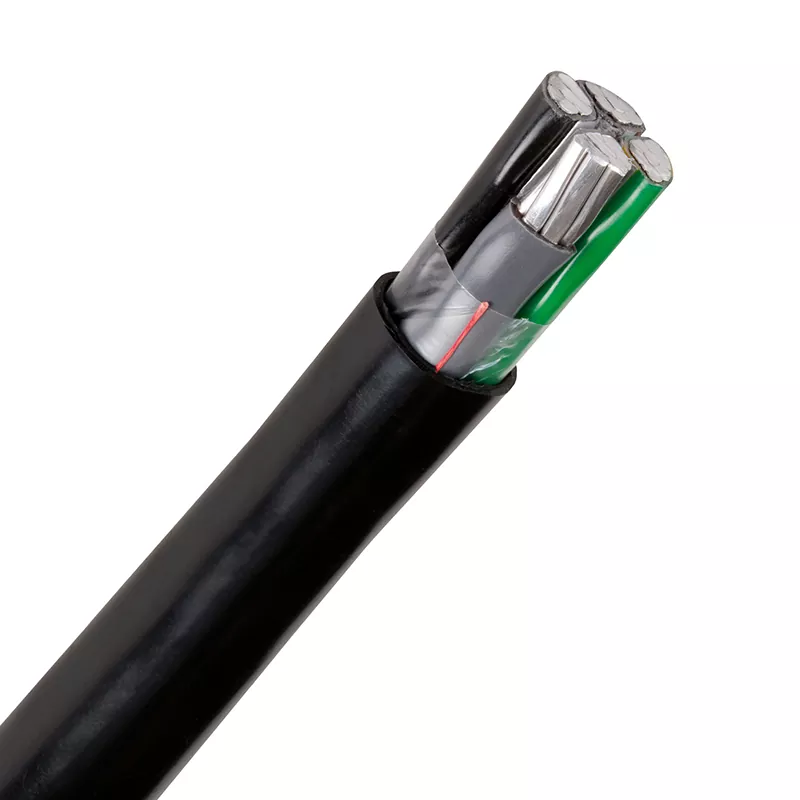

  • 0.6/1 kV Multi-core cables unarmoured with aluminum conductor - 2 0.6/1 kV Multi-core cables unarmoured with aluminum conductor - 2

0.6/1 kV Multi-core cables unarmoured with aluminum conductor

DAYA electrical is a large-scale 0.6/1 kV Multi-core cables unarmoured with aluminum conductor manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.ＤＡＹＡ manufactures comprehensive range of XLPE (Cross-Linked Polyethylene) cables. ＤＡＹＡ has a full suite of XLPE Cables, including Single Cores and Multicores in both Class 2 and Flexible Class 5, for entire construction market.

Send Inquiry

PDF DownLoad

Product Description

Application

Once you've identified the correct construction and standards, we can supply your MV cables against your project timelines - whether that's as an urgent requirement coming direct from stock, despatched same-day, or manufactured and delivered against your schedule, via our fleet - including using hiab self-offloading vehicles where needed.

Our MV cables are available in specific lengths as well as in extended long lengths to aid installation and to reduce the number of joints. Accompanying cable accessories, with the cable size calibrated to match seamlessly, can also be provided.

Custom designed Medium Voltage cables

For efficiency and longevity, every MV cable should be tailored to the installation but there are times when a truly bespoke cable is needed. Our MV cable experts can work with you to design a solution that matches your requirements. Most commonly, customisations affect the area size of the metallic screen, which can be adjusted to change the short circuit capacity and earthing provisions.

In every case, the technical data is provided to demonstrate suitability and the specification honed for manufacture. All customised solutions are subject to enhanced testing in our MV Cable Testing Facility.

CONSTRUCTION

1 Conductor

Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.

2 Insulation

XLPE ( cross-linked polyethylene ) rated at 90 °C.

3 Colours for core identification

Single core - natural ( black on request )

Two core - red, black

Three core - red, yellow and blue

Four core - red, yellow, blue and black

Five core - red, yellow, blue, black and green/yellow

4 Assembly

Two, three, four or five insulated conductors are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

5 Sheath

PVC type ST2 to IEC 60502, colour black.

DAYA 0.6/1 kV Multi-core cables unarmoured with aluminum conductor Details

DAYA 0.6/1 kV Multi-core cables unarmoured with aluminum conductor Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Medium Voltage cable testing facility

Given the critical nature of the infrastructure connection created with MV cables, reliability, quality and compliance are vital. To provide the necessary assurances of this to both electrical engineers and their end-user customers, we test our MV cables in our specialist testing facility.

Our MV facility is an extension of The Cable Lab where we undertake tests on cables of rated voltage 3.3/6.6kV and upwards. This includes key tests such as the cable integrity withstand test, also known as VLF testing to determine any failure in the sheathing material. It provides comprehensive quality assurance on British Standard and European/IEC standard MV cables, armoured or unarmoured, as well as industry-specific MV cables such as DNO 11kv and 33kv, and Network Rail trackside power 25/44kV.

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA 0.6/1 kV Multi-core cables unarmoured with aluminum conductor Parameter (Specification)

Nominal

cross

sectional

area

ELECTRICALDATA

DIMENSIONSANDWEIGHTS





Cable Code

Max. Conductor Resistance

Continuous Current Ratings

Approx. overall   diameter

Approx. overall weight

DC at

20 °C

AC at

90 °C

Laid in

ground

Laid in

ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km



Two Core Cables

10                   rm                        3.0800                           3.9490                      70                  49                 63                 13.8             250             A314XA10200MB01IMR

16                   rm                        1.9100                           2.4490                      91                  64                 85                 15.8             325             A315XA10200MB01IMR

25                   rm                        1.2000                           1.5388                     118                 85                116                18.4            455             A316XA10200MB01IMR

35                   rm                        0.8680                           1.1133                     142                103               142               21.0             590             A317XA10200MB01IMR

Three Core Cables

10                   rm                        3.0800                           3.9490                      58                  41                 53                 15.1             265             A314XA10300MB04IMR

16                   rm                        1.9100                           2.4490                      75                  54                 72                 17.3             370             A315XA10300MB04IMR

25                   rm                        1.2000                           1.5388                      98                  71                 98                20.0            475             A316XA10300MB04IMR

35                 sm                        0.8680                           1.1133                     111                  82                109               20.0             575             A417XA10300MB04IMR

50                  sm                        0.6410                           0.8224                     133                 99                134               23.0             720             A418XA10300MB04IMR

70                  sm                        0.4430                           0.5688                     163                123               171               26.5             955             A419XA10300MB04IMR

95                  sm                        0.3200                           0.4115                     195                150               210               29.9            1235            A445XA10300MB04IMR

120                 sm                       0.2530                           0.3259                     222                173               246               33.2            1525            A446XA10300MB04IMF

Four Core Cables

10                   rm                        3.0800                           3.9490                      58                  41                 53                16.4             365             A314XA10400MB08IMR

16                   rm                        1.9100                           2.4490                      75                  54                 72                18.9            455             A315XA10400MB08IMR

25                   rm                        1.2000                           1.5388                      98                  71                 98                22.0             575             A316XA10400MB08IMR

35                  sm                       0.8680                           1.1133                     111                  82                109               23.0             685             A417XA10400MB08IMR

50                  sm                       0.6410                           0.8224                     133                 99                134               26.5             880             A418XA10400MB08IMR

70                  sm                       0.4430                           0.5688                     163                123               171               30.8            1190            A419XA10400MB08IMR

95                  sm                       0.3200                           0.4115                     195                150               210               33.5            1580            A445XA10400MB08IMR

120                 sm                       0.2530                           0.3259                     222                173               246               37.6            1970            A446XA10400MB08IMF

150                 sm                       0.2060                           0.2660                     248                196               280               42.1            2410            A447XA10400MB08IMF

185                 sm                       0.1640                           0.2126                     282                225               325               47.1            2960            A448XA10400MB08IMF

240                 sm                       0.1250                           0.1634                     327                265               388               52.9           3795            A449XA10400MB08IMS

300                 sm                       0.1000                           0.1321                     370                304               449               58.5           4635            A450XA10400MB08IMS

400                 sm                       0.0778                           0.1047                    424                354               530               67.1           6000            A451XA10400MB08IMS

500                 sm                       0.0605                           0.0838                    484                408               618               74.6           7570            A452XA10400MB08IMS

Four Core Cables with Reduced Neutral

50sm              25rm              0.6410 / 1.2000            0.8224 / 1.5388             133                 99                134               26.5             815             A436XA10400MB08IMR

70sm             35sm             0.4430 / 0.8680            0.5688 / 1.1133             163                123               171               29.2            1080            A437XA10400MB08IMR

95sm             50sm             0.3200 / 0.6410            0.4115 / 0.8224             195                150               210               33.0            1420            A438XA10400MB08IMR

120sm            70sm             0.2530 / 0.4430            0.3259 / 0.5688             222                173               246               35.9            1775            A439XA10400MB08IMF

150sm            70sm             0.2060 / 0.4430            0.2660 / 0.5688             248                196               280               39.7            2140            A440XA10400MB08IMF

185sm            95sm             0.1640 / 0.3200            0.2126 / 0.4115             282                225               325               44.6            2670            A441XA10400MB08IMF

240sm           120sm            0.1250 / 0.2530            0.1634 / 0.3259             327                265               388               49.9           3380            A442XA10400MB08IMS

300sm           150sm            0.1000 / 0.2060            0.1321 / 0.2660             370                304               449               55.2           4130            A443XA10400MB08IMS

400sm           185sm            0.0778 / 0.1640            0.1047 / 0.2126             424                354               530               63.1           5255            A444XA10400MB08IMS

500sm           240sm            0.0605 / 0.1250            0.0838 / 0.1634             484                408               618               70.3           6600            A466XA10400MB08IMS


DAYA 0.6/1 kV Multi-core cables unarmoured with aluminum conductor Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA 0.6/1 kV Multi-core cables unarmoured with aluminum conductor FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.


2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.


3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.


4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.


5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.


6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
