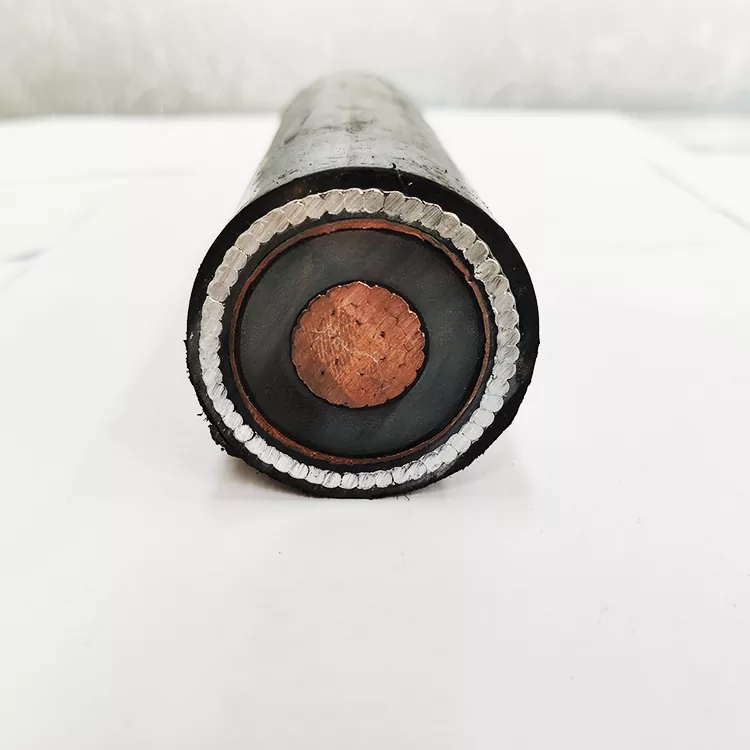

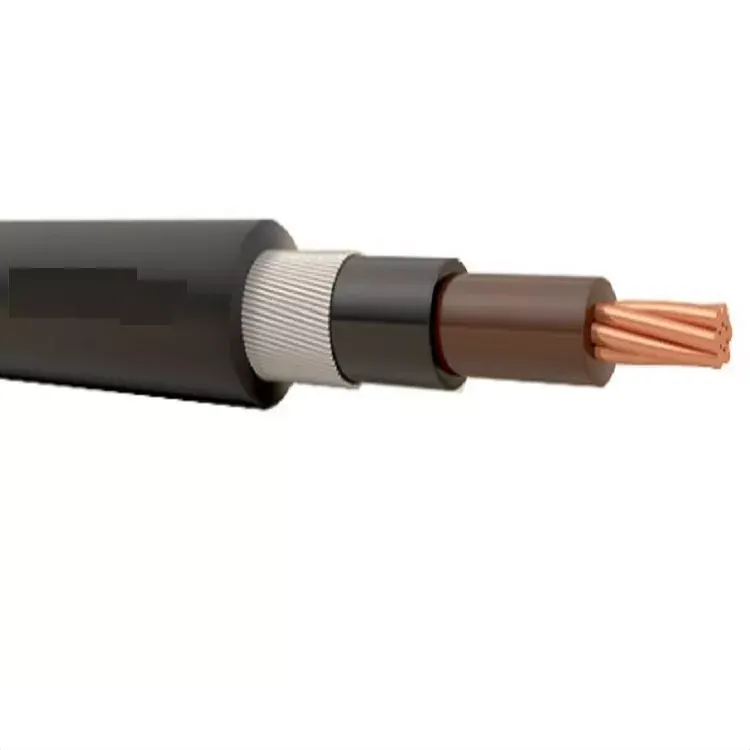

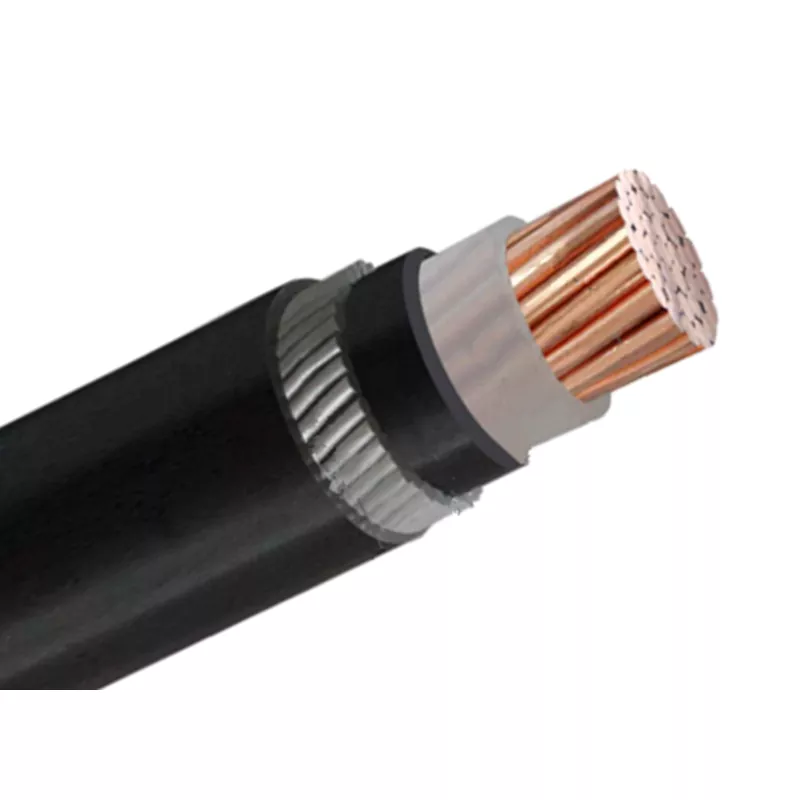

0.6/1kv single-core cables wire armoured with copper conductor

DAYA electrical is a large-scale 0.6/1kv single-core cables wire armoured with copper conductor manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. Single core and multi-core cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conform to IEC 60502.

Two, three, four or five insulated conductors are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

Sheath

PVC type ST2 to IEC 60502, colour black.

DAYA 0.6/1kv single-core cables wire armoured with copper conductor Details

DAYA 0.6/1kv single-core cables wire armoured with copper conductor Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA 0.6/1kv single-core cables wire armoured with copper conductor Parameter (Specification)

Nominal cross section al area	ELECTRICALDATA									DIMENSIONS AND WEIGHTS		Cable Code
	Max.Conductor Resistance		Continuous Current Ratings							Approx. overall diameter	Approx. overall weight
	DC at 20 °C	AC at 70 °C	Buried direct in ground		In buried ducts		Infree air
mm²	Ω / km	Ω / km	(a)	(b)	(c)	(d)	(e)	(f)	(g)
mm²	Ω / km	Ω / km	A	A	A	A	A	A	A	mm	kg / km
6	3.0800	3.6853	48	48	40	44	45	46	56	13.6	280	C213PA1010ACB51IMR
10	1.8300	2.1897	63	63	53	58	60	62	75	14.2	330	C314PA1010ACB51IMR
16	1.1500	1.3761	81	81	68	74	79	81	99	15.2	410	C315PA1010ACB51IMR
25	0.7270	0.8701	104	104	87	95	104	106	129	16.8	540	C316PA1010ACB51IMR
35	0.5240	0.6273	124	123	104	113	127	129	156	18.0	665	C317PA1010ACB51IMR
50	0.3870	0.4635	146	145	123	132	153	155	185	19.6	825	C318PA1010ACB51IMR
70	0.2680	0.3214	177	176	151	161	190	193	229	21.4	1065	C319PA1010ACB51IMR
95	0.1930	0.2320	209	208	181	189	232	233	272	23.4	1370	C345PA1010ACB51IMR
120	0.1530	0.1844	236	233	205	212	266	265	307	24.9	1640	C346PA1010ACB51IMR
150	0.1240	0.1501	263	259	229	234	302	299	340	26.8	1960	C347PA1010ACB51IMR
185	0.0991	0.1208	293	287	258	258	345	337	379	29.1	2380	C348PA1010ACB51IMR
240	0.0754	0.0933	333	324	296	287	402	386	425	32.0	3010	C349PA1010ACB51IMR
300	0.0601	0.0757	363	349	325	303	452	422	454	35.8	3755	C350PA1010ACB51IMR
400	0.0470	0.0611	397	380	360	326	508	464	493	39.4	4740	C351PA1010ACB51IMR
500	0.0366	0.0499	432	410	395	348	568	507	535	43.4	5965	C352PA1010ACB51IMF
630	0.0283	0.0415	465	438	429	368	627	547	574	47.4	7395	C353PA1010ACB51IMF
800	0.0221	0.0352	477	452	444	382	664	572	613	52.7	9480	C354PA1010ACB51IMF
1000	0.0176	0.0312	503	476	475	408	729	623	678	61.5	11840	C255PA1010ACB51IMF

DAYA 0.6/1kv single-core cables wire armoured with copper conductor Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA 0.6/1kv single-core cables wire armoured with copper conductor FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.

Hot Tags: 0.6/1kv single-core cables wire armoured with copper conductor, China, Factory, Manufacturers, Suppliers, Price

Product Tag

Related Categories

DAYA

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy

Reject Accept

Application:	For mains, sub-mains and sub circuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical stress. Suitable where space is at a premium and/or where conditions of overload may occur.
Conductor:	Plain annealed copper
Insulation:	XLPE X-90
Sheath:	PVC 5V-90
Voltage:	0.6/1KV
Standards:	AS/NZS 1125, AS/NZS3808 and AS/NZS 5000.1
Voltage:	90°C
