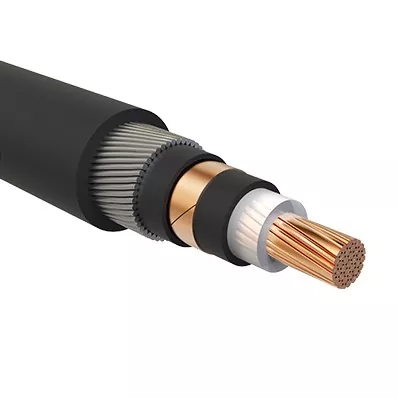

N2XSR(AL)Y-1 core CU XLPE PVC with AWA armor

N2XSY cable specification

Specified for power distribution networks, transformer stations, switching blocks and power plants, including in the renewable energy sector, the N2XSY offers a robust construction and low factor of dielectric loss for high operational reliability. It should not be subjected to heavy mechanical or tensile strain. N2XSY cable is red and should be protected against sunlight and UV radiation according to VDE 0276-603. It can be manipulated and installed in ambient temperatures ranging between -5oC and +70oC.

Support with specification can be provided at any stage of the project consultation or procurement process by our technical experts.

This cable is similar in construction to NA2XSY cable, which has an aluminium conductor and which can sometimes be used as a cost-efficient alternative.

N2XSY cable voltage rating

With the broad scope for applications and installations, the N2XSY cable is available with the following voltage ratings:

6/10 (12)kV – Test Voltage 21kV

12/20 (24)kV – Test Voltage 42kV

18/30 (36)kV – Test Voltage 63kV

For full technical specifications and for details of the 12/20kV cable and 18/30kV cable, please refer to the datasheets or speak to our technical team for more advice.

Other international references for N2XSY cable

Finland: HXCMK

Austria: E-2XHCY

Russia: ПвЭВ

DAYA Cables supplies a wide range of medium voltage cables, including N2XSY, to over 130 countries. Please speak to our international team about the geographic location and demands of your project for a tailored solution.

DAYA N2XSR(AL)Y-1 core CU XLPE PVC with AWA armor Details

DAYA N2XSR(AL)Y-1 core CU XLPE PVC with AWA armor Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA N2XSR(AL)Y-1 core CU XLPE PVC with AWA armor Parameter (Specification)

DAYA N2XSR(AL)Y-1 core CU XLPE PVC with AWA armor Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA N2XSR(AL)Y-1 core CU XLPE PVC with AWA armor FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
