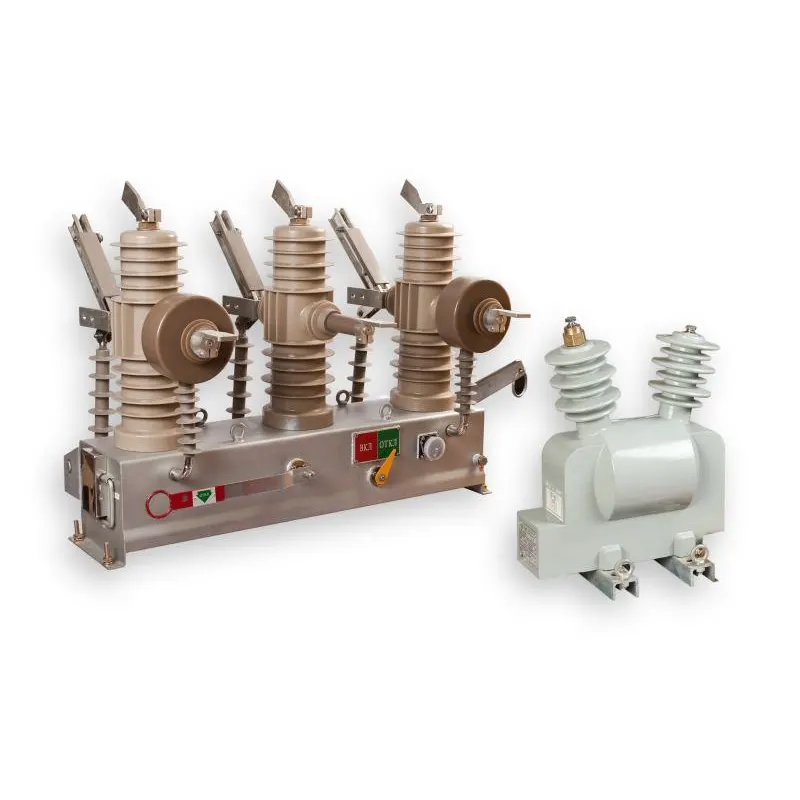

Automatic Recloser Switch

DAYA Automatic Recloser Switch  Details

Auto Recloser is an automatic medium voltage electric switch which is designed for use on overhead electricity distribution networks to detect and interrupt momentary faults. It shuts off electric power when trouble occurs, such as a short circuit.

Definition & Meaning Automatic Circuit Recloser (ACR) is an intellectual protective device capable of interrupting fault current and which purpose is to increase distribution system reliability. Their function is to automatically disconnect a section of feeder in the event of fault, such as a short circuit.

DAYA GCK Low Voltage Automatic Recloser Switch Working conditions

• Altitude: ≤ 2000 m.
• Temperature range: -5 °C to +40 °C, and the average temperature within 24 hours should not exceed +35 °C.
• The relative humidity should not exceed 50% at +40 °C, and higher relative humidity is allowed at low temperature (90% at +20 °C). And air must be clean.
• Workplaces should be free of fire, explosion, serious pollution, chemical corrosion and severe vibration.
• Gradient: ≤ 5°, vertical installation.
• Temperature range of transportation & storage: -25 °C to +55°C, and the temperature can be up to +70 °C in short time (within 24 hours).

DAYA Automatic Recloser Switch Parameter (Specification)

Auto Recloser is an automatic medium voltage electric switch which is designed for use on overhead electricity distribution networks to detect and interrupt momentary faults. It shuts off electric power when trouble occurs, such as a short circuit.

DAYA Automatic Recloser Switch Processing characteristics

1. Cabinet part: all right-angled parts that operators may come into contact with are all reversed at R angles to prevent scratching and hurting people; the improved busbar frame is more convenient to install busbars and has a more beautiful appearance; the ventilation grid installed on the top cover has anti- Drip function; the top cover is an open structure, which is convenient for users to place horizontal busbars on site;

2. Drawer part: the drawer adopts double-folding positioning groove rivet riveting process, and all parts are molded at one time, so that the drawer is 100% interchangeable. At the same time, the double-folding and rivet technology solves the defects of sheet burr and self-tapping screw tip injury;

3. Connectors: The first-time plug-in for the incoming and outgoing lines of the drawer can be directly used in conjunction with the function board and the metal channel, and the secondary connector is convenient to connect and the wiring is beautiful;

4. Vertical channel: half functional board or iron rectangular channel can be selected, and can be easily interchanged.
