Outdoor Gas Circuit Breaker

DAYA Outdoor Gas Circuit Breaker  Details

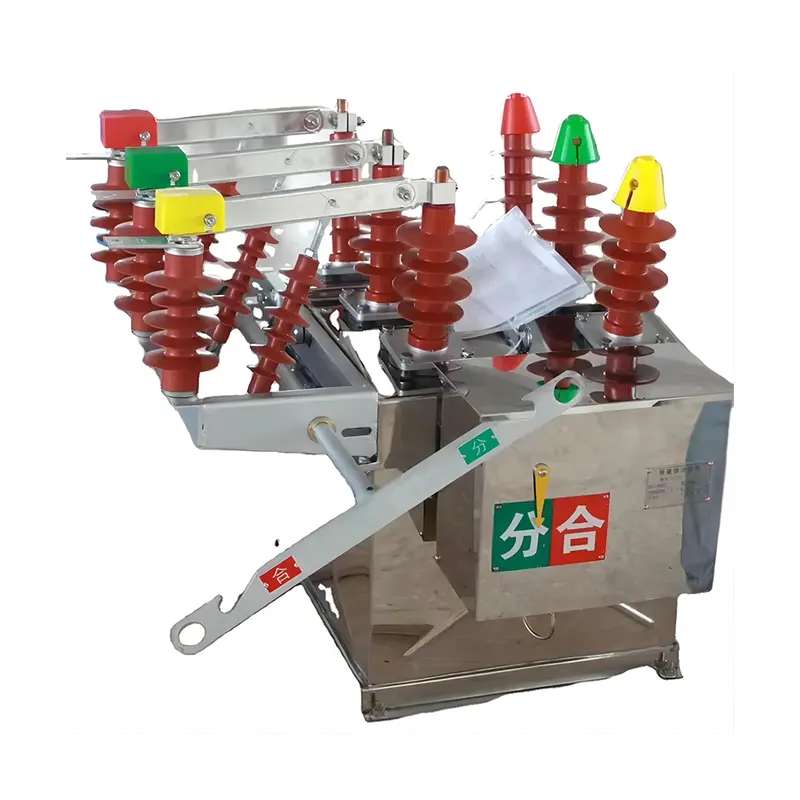

Medium Voltage circuit breaker with mechanical operating mechanism designed for distribution systems up to 40.5 kV, 2500 A, 31.5 kA. These circuit breakers are of live tank design.

A single-pole breaker protects a single circuit in your home’s electrical system. This single circuit might power the lights in your living room or feed receptacles in your kitchen. Single-pole breakers take up one slot in your home’s electrical panel and typically protect 15-amp and 20-amp circuits.

These circuit breakers are of live tank design. They are used in power distribution for control and protection of lines and for control and protection of transformers, rectifier units, capacitor banks, etc. Thanks to the autopuffer breaking technique, they do not generate operating overvoltages.

These circuit breakers are of live tank design. They are used in power distribution for control and protection of lines and for control and protection of transformers, rectifier units, capacitor banks, etc. Thanks to the autopuffer breaking technique, they do not generate operating overvoltages. This means they are also highly suitable for retrofitting, where the plant insulating materials may be sensitive to dielectric stresses.

DAYA Outdoor Gas Circuit Breaker Parameter (Specification)

DAYA offering of outdoor circuit breakers provides customers with the full range of ANSI and IEC standard designs with the latest state of the art switching developments for increased safety and reliability, including SF6 gas or vacuum interruption, magnetic or spring mechanism, live tank or dead tank solutions commonly known as Dog House or Kiosk design allowing grid optimization and smart grid applications.

ANSI standard: 15kV, 27kV and 38kV

IEC standard: 12kV, 13.2kV, 17.5kV, 24kV, 36kV and 40.5kV

DAYA Outdoor Gas Circuit Breaker Processing characteristics

1. Cabinet part: all right-angled parts that operators may come into contact with are all reversed at R angles to prevent scratching and hurting people; the improved busbar frame is more convenient to install busbars and has a more beautiful appearance; the ventilation grid installed on the top cover has anti- Drip function; the top cover is an open structure, which is convenient for users to place horizontal busbars on site;

2. Drawer part: the drawer adopts double-folding positioning groove rivet riveting process, and all parts are molded at one time, so that the drawer is 100% interchangeable. At the same time, the double-folding and rivet technology solves the defects of sheet burr and self-tapping screw tip injury;

3. Connectors: The first-time plug-in for the incoming and outgoing lines of the drawer can be directly used in conjunction with the function board and the metal channel, and the secondary connector is convenient to connect and the wiring is beautiful;

4. Vertical channel: half functional board or iron rectangular channel can be selected, and can be easily interchanged.
