XLPE Cables

DAYA electrical is a large-scale XLPE Cables manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.XLPE cable stands for cross-linked polyethylene cable. It is a type of cable that has polyethylene plastic or compound as its insulation material. The polyethylene molecules are bonded together in long strands to form a ladder-type product1. This process makes the cable have better heat resistance, load capacity, chemical corrosion resistance, and mechanical strength than PVC insulated cables. XLPE cable can be used for power distribution network and other fields, especially for medium to high and extra-high voltage power cables. Some XLPE cables also have aluminium conductor and semi-conducting extrusion to prevent cavities and smooth the surface.

Cross Linking Effect

XLPE is the recognized abbreviation for cross-linked polyethylene. This and other cross-linked synthetic materials, of which EPR (ethylene propylene rubber) is a notable example, are being increasingly used as cable insulants for a wide range of voltages.DESCRIPTIO

Single core and multi-core cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conform to IEC 60502.

The effect of the cross-linking is to inhibit the movement of molecules with respect to each other under the stimulation of heat and this gives the improved stability at elevated temperatures compared with the thermoplastic materials. This permits higher operating temperatures, both for normal loading and under short-circuit conditions, so that an XLPE cable has a higher current rating than its equivalent PVC counterpart.

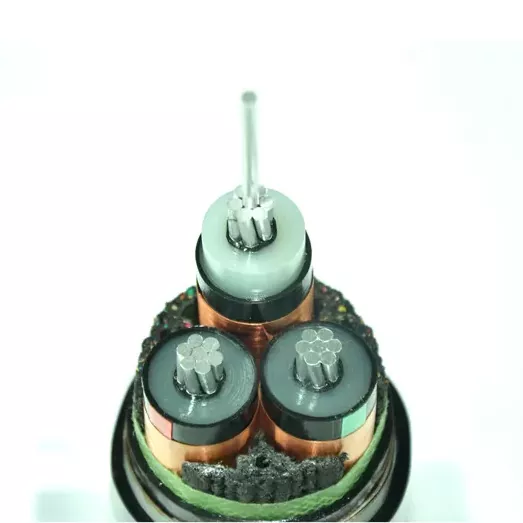

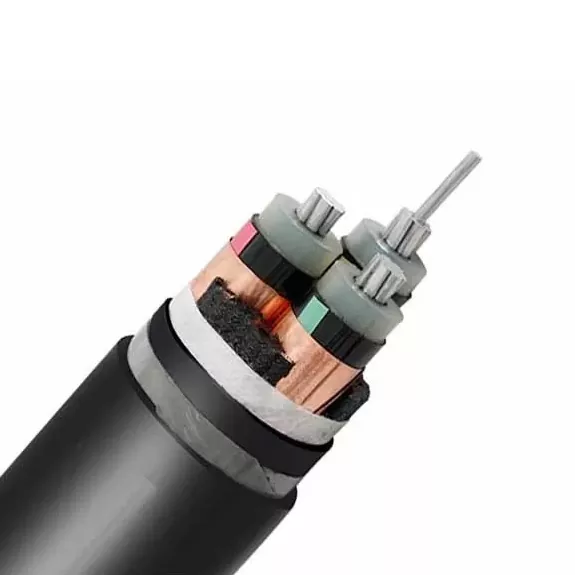

Where:

Circular stranded conductor

Semiconductor XLPE screen

XLPE insulation

Semiconducting tape screen

Copper tape screen

PVC filler

Binder

Extruded PVC sheath

Galvanized steel wire armour 10. Extruded PVC oversheath

In the UK this type of cable, mainly in single-core form, is favoured for power station cabling, where lightness and convenience of terminating are major considerations. Three-core designs are also used for site supplies.

For underground distribution at 11kV, the XLPE cable does not compete economically with the paper-insulated aluminium-sheathed cable, but work is in progress on standardizing and assessing XLPE cable design, including trial installations, in preparation for any change in the situation. Overseas, where circumstances are different, XLPE cable is the type in major demand.

DAYA XLPE Cables Details

DAYA XLPE Cables Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA XLPE Cables Parameter (Specification)

Nominal cross sectional area		ELECTRICALDATA					DIMENSIONSANDWEIGHTS		Cable Code
		Max.Conductor Resistance		Continuous Current Ratings			Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground	Laid in ducts	Laid in free air	Approx. overall diameter	Approx. overall weight
mm²		Ω / km	Ω / km	A	A	A	mm	kg / km
				Two Co	re Cables
10	rm	3.0800	3.9490	68	50	64	16.6	410	A314XA1020GMB01IMR
16	rm	1.9100	2.4490	89	65	85	18.6	515	A315XA1020GMB01IMR
25	rm	1.2000	1.5388	115	86	115	21.2	675	A316XA1020GMB01IMR
35	rm	0.8680	1.1133	138	104	140	23.8	840	A317XA1020GMB01IMR
				Three C	ore Cables
10	rm	3.0800	3.9490	57	41	54	17.9	440	A314XA1030GMB04IMR
16	rm	1.9100	2.4490	73	54	72	20.1	545	A315XA1030GMB04IMR
25	rm	1.2000	1.5388	95	72	97	22.8	700	A316XA1030GMB04IMR
35	sm	0.8680	1.1133	108	82	108	22.8	750	A417XA1030GMB04IMR
50	sm	0.6410	0.8224	129	99	132	25.8	930	A418XA1030GMB04IMR
70	sm	0.4430	0.5688	158	124	167	29.7	1235	A419XA1030GMB04IMR
95	sm	0.3200	0.4115	189	150	204	33.3	1575	A445XA1030GMB04IMF
120	sm	0.2530	0.3259	217	174	241	37.8	2245	A446XA1030GMB04IMF
				Four C	ore Cables
10	rm	3.0800	3.9490	57	41	54	19.2	515	A314XA1040GMB08IMR
16	rm	1.9100	2.4490	73	54	72	21.7	640	A315XA1040GMB08IMR
25	rm	1.2000	1.5388	95	72	97	24.8	845	A316XA1040GMB08IMR
35	sm	0.8680	1.1133	108	82	108	25.8	930	A417XA1040GMB08IMR
50	sm	0.6410	0.8224	129	99	132	29.5	1180	A418XA1040GMB08IMR
70	sm	0.4430	0.5688	158	124	167	34.0	1560	A419XA1040GMB08IMR
95	sm	0.3200	0.4115	189	150	204	38.1	2315	A445XA1040GMB08IMF
120	sm	0.2530	0.3259	217	174	241	42.6	2845	A446XA1040GMB08IMF
150	sm	0.2060	0.2660	241	196	272	47.1	3390	A447XA1040GMB08IMF
185	sm	0.1640	0.2126	274	255	314	52.1	4075	A448XA1040GMB08IMS
240	sm	0.1250	0.1634	317	264	372	58.3	5105	A449XA1040GMB08IMS
300	sm	0.1000	0.1321	357	301	428	63.9	6085	A450XA1040GMB08IMS
400	sm	0.0778	0.1047	410	349	503	72.9	7705	A451XA1040GMB08IMS
500	sm	0.0605	0.0838	464	400	580	81.8	10245	A452XA1040GMB08IMS
			Four C	ore Cables	with Reduc	ed Neutral
50sm	25 rm	0.6410 / 1.2000	0.8224 / 1.5388	129	99	132	29.3	1125	A436XA1040GMB08IMR
70sm	35sm	0.4430 / 0.8680	0.5688 / 1.1133	158	124	167	32.6	1435	A437XA1040GMB08IMR
95sm	50sm	0.3200 / 0.6410	0.4115 / 0.8224	189	150	204	37.4	2140	A438XA1040GMB08IMR
120sm	70sm	0.2530 / 0.4430	0.3259 / 0.5688	217	174	241	40.5	2580	A439XA1040GMB08IMF
150sm	70sm	0.2060 / 0.4430	0.2660 / 0.5688	241	196	272	44.7	3045	A440XA1040GMB08IMF
185sm	95sm	0.1640 / 0.3200	0.2126 / 0.4115	274	255	314	49.6	3690	A441XA1040GMB08IMF
240sm	120sm	0.1250 / 0.2530	0.1634 / 0.3259	317	264	372	55.5	4590	A442XA1040GMB08IMS
300sm	150sm	0.1000 / 0.2060	0.1321 / 0.2660	357	301	428	60.6	5445	A443XA1040GMB08IMS
400sm	185sm	0.0778 / 0.1640	0.1047 / 0.2126	410	349	503	68.5	6805	A444XA1040GMB08IMS
500sm	240sm	0.0605 / 0.1250	0.0838 / 0.1634	464	400	580	76.1	8405	A466XA1040GMB08IMS

DAYA XLPE Cables Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA XLPE Cables FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
