XLP USE RHH-RHW-2 Electric Wire

RHH/RHW-2/USE-2 can be installed as a General Purpose Building Wire, used in service entrance, feeders and branch circuit applications for residential, commercial, industrial and transportation environments for permanent installations utilizing 600 volts or less. Thanks to its excellent performance in overload or short circuit situations, and its heavy wall thickness, this product is ideal for underground service entrance (USE) in wet locations. RHH/RHW-2/USE-2 conductors are suitable for use in direct burial applications. RHH/RHW-2/USE-2 conductors can be used in environments where superior insulation toughness and chemical resistance is required. RHH/RHW-2/USE-2 has a high resistance to humidity making this cable suitable for wet locations, for outdoors and for weather resistant use.

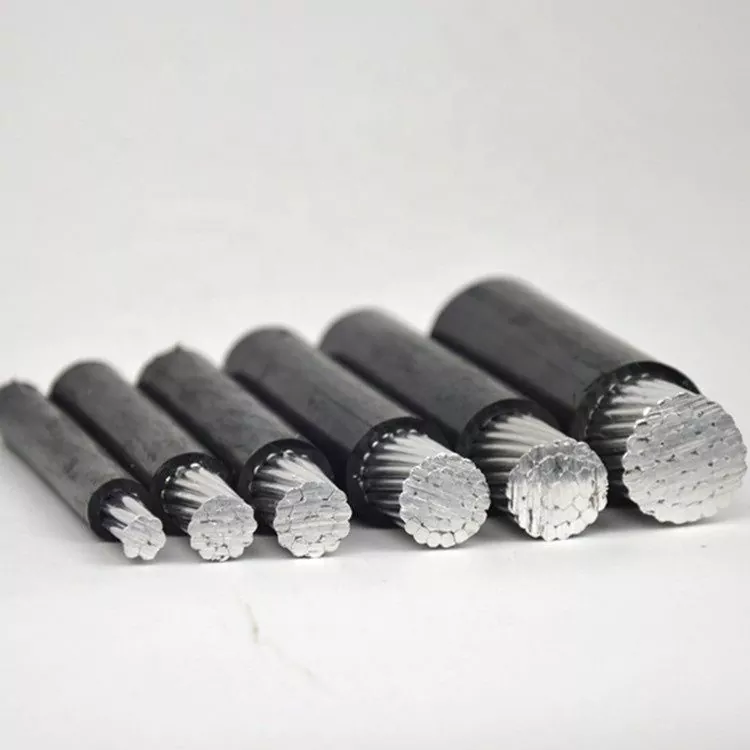

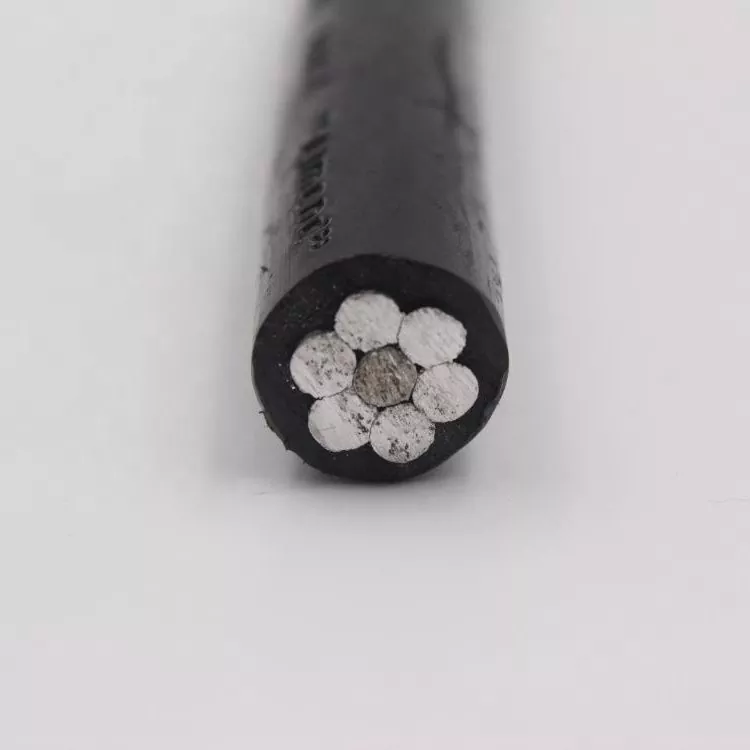

Type RHH/RHW-2/USE-2 is a single insulated conductor of either soft annealed copper or compact stranded AA-8000 series aluminum alloy, insulated with black thermoset cross-linked Polyethylene (XLPE); designed to operate not over 600 volts, nominal, and at a maximum operating temperature of 90°C dry or wet.

RHH/RHW-2/USE-2 conductors can be installed in electrical metallic tubing, PVC conduits and other raceways, in free air with messenger support or directly buried. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.

Specification Standards:

• UL 44

• UL 854

• ASTM-B3

• ASTM-B8

• ASTM-B800

• ASTM-B801

• U.S. Federal Specification J-C 30B

• NEMA WC70/ICEA S-66-524

DAYA XLP USE RHH-RHW-2 Electric Wire Details

DAYA XLP USE RHH-RHW-2 Electric Wire Working conditions

Specifications:

R = Rubber Insulation

A rubber outer layer that is very important when it comes to copper cables, especially when those cables are utilized in possible hazardous environments. Like XHHW and XHHW-2, RHW-2 wires are insulated by cross-linked polyethylene (XLPE). Even though the “R” stands for rubber, it also incorporates other neoprene insulations that XLPE falls under.

H = Heat Resistance of 75° C

Cables must be able to withstand the elements. The insulation’s length and width determine its heat resistance. The thinner the XPLE insulation, the less resistant it is to heat.

W = Water Resistance

Possibly the most important factor when considering the environment of your wire. The “W” means the cables can be submerged in water if needed. Even though the wire has a rubber outer layer and is acceptable for use in damp environments, the “W” designation is required for use in the presence of water and other liquids.

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA XLP USE RHH-RHW-2 Electric Wire Parameter (Specification)

DAYA XLP USE RHH-RHW-2 Electric Wire Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA XLP USE RHH-RHW-2 Electric Wire FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
