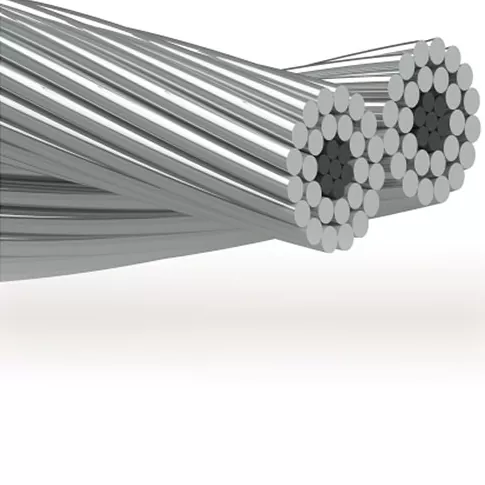

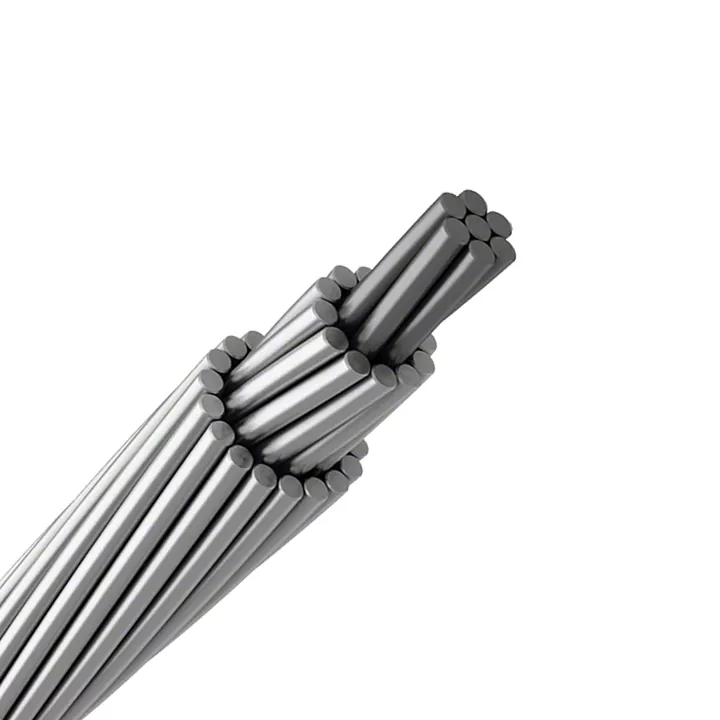

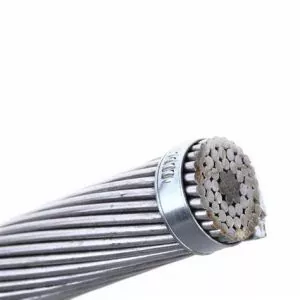

TP-ACSR Bare Conductor Cable

ACSR Conductor Application

ACSR wire, or Aluminum Conductor Steel Reinforced cable, is an electrical cable mainly used for distribution services as well as bare overhead transmission, both primary and secondary, in various industrial settings, including construction. ACSR cable is especially suitable for line design due to its steel core strand, which increases the strength of the cable without sacrificing its ampacity, yet affects the ACSR wire price. The aluminum alloy conductor in ACSR wire prevents overheating and allows for extra flexibility of the electrical wire. .

ACSR Conductor Standards

B-230 Aluminum wire, 1350-H19 for Electrical Purposes

B-231 Aluminum conductors, concentric lay stranded

B-232 Aluminum conductors, concentric lay stranded, coated steel reinforced (ACSR)

B-341 Aluminum coated steel core wire for aluminum conductors, steel reinforced (ACSR/AZ)

B-498 Zinc coated steel core wire for aluminum conductors, steel reinforced (ACSR)

B-500 Metallic coat

ACSR Conductor Application

ACSR conductors have been widely used in power transmission lines with various voltage levels, because they have such good

characteristics as simple structure, convenient insulation and maintenance, low cost large transmission capacity. And they are

also suitable for laying across rivers valleys and the places where special geographical features exist.

DAYA TP-ACSR Bare Conductor Cable Details

DAYA TP-ACSR Bare Conductor Cable Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA TP-ACSR Bare Conductor Cable Parameter (Specification)

DAYA TP-ACSR Bare Conductor Cable Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.
