Home > Products > Electric Wire > THHN-THWN-2 Electric Wire
Products
New Products
THHN-THWN-2 Electric Wire

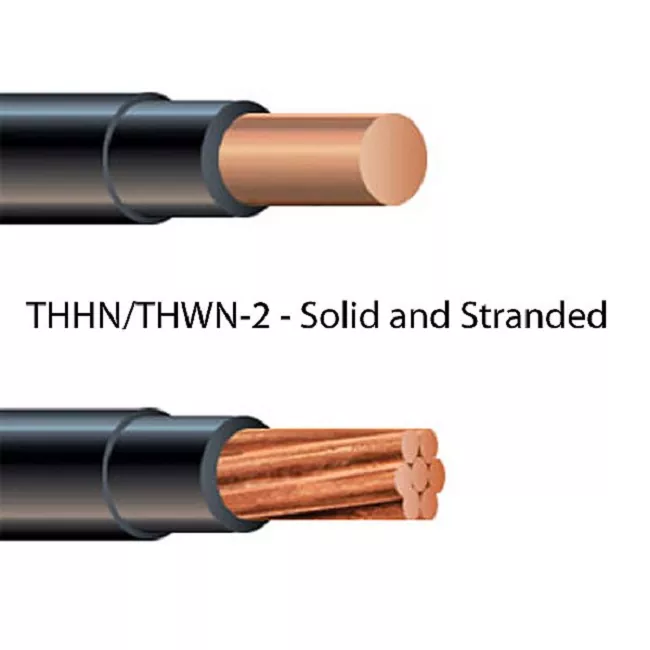

  • THHN-THWN-2 Electric Wire - 0 THHN-THWN-2 Electric Wire - 0

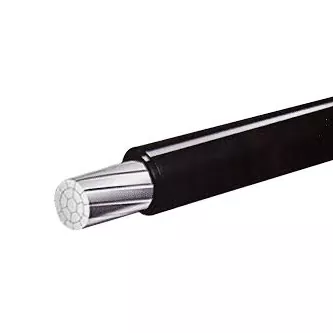

  • THHN-THWN-2 Electric Wire - 1 THHN-THWN-2 Electric Wire - 1

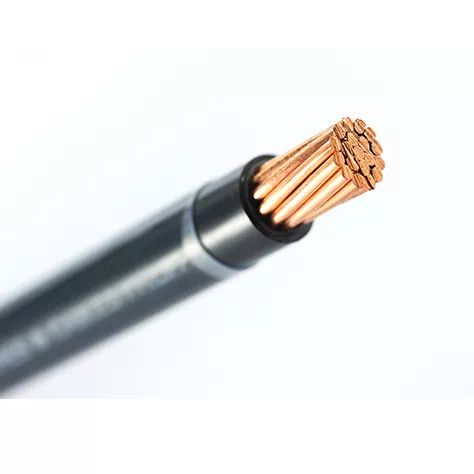

  • THHN-THWN-2 Electric Wire - 2 THHN-THWN-2 Electric Wire - 2

THHN-THWN-2 Electric Wire

DAYA electrical is a large-scale THHN-THWN-2 Electric Wire manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. THHN wire is a type of single conductor electrical wire with a PVC jacket and nylon coating. It is thermoplastic, high-heat resistant, and flame-retardant. It can operate up to 600 Volts and 194°F or 90℃. It is commonly used for general building purposes, such as residential and commercial wiring, in dry locations or in conduits. It is available in different sizes, but 12 and 4/0 are the most popular.

Send Inquiry

PDF DownLoad

Product Description

Type THHN-THWN-2 building wire is intended for general purpose applications and may be installed in conduit, duct, or other recognized raceways in wet (60oC oil/90oC water) or dry (105oC) locations. For both new work and rewiring applications, the smaller diameter of wire permits additional circuits or larger conductors to be installed in the conduit without exceeding maximum fill limitations. The insulation is a high quality, heat and moisture resistant polyvinyl chloride compound over which a heat and light stabilized nylon jacket is tightly applied.

File Name:

THHN COPPER WIRE.pdf

File Size:

298.26 KB

File Type:

application/pdf

Hits:

3935 Hits

Created Date:

01-07-2020

Last Updated Date:

01-07-2020

DAYA THHN-THWN-2 Electric Wire Details

DAYA THHN-THWN-2 Electric Wire Working conditions

Specifications:

THHN

THWN-2

Single 19 Stranded Conductor

Soft Annealed Copper

600V 90°C

Polyvinyl Chloride PVC Coating with Nylon (Poly made) outer covering

Nema Publication no WC 70

Gasoline and Oil Resistant

ARRA 2009 Section 1605 “By American” compliant

UL Listed

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA THHN-THWN-2 Electric Wire Parameter (Specification)

Part Number

Conducto r Size

Conducto

r

Diameter

Insulation

Thicknes

s

JacketThickness

OverallDiameter

Net

Weight

Ampacity*

* at90°C

AWG/KCM

inches

mm

inches

mm

inches

mm

inches

mm

lbs/kft

8-01AL-THHN

8

0.134

3.40

0.030

0.76

0.005

0.13

0.204

5.18

27

45

6-01AL-THHN

6

0.169

4.29

0.030

0.76

0.005

0.13

0.239

6.07

38

60

4-01AL-THHN

4

0.213

5.41

0.040

1.02

0.006

0.15

0.305

7.75

62

75

2-01AL-THHN

2

0.268

6.81

0.040

1.02

0.006

0.15

0.360

9.14

91

100

1-01AL-THHN

1

0.299

7.59

0.050

1.27

0.007

0.18

0.413

10.49

117

115

1/0-01AL-THHN

1/0

0.335

8.51

0.050

1.27

0.007

0.18

0.450

11.43

141

135

2/0-01AL-THHN

2/0

0.378

9.60

0.050

1.27

0.007

0.18

0.490

12.45

172

150

3/0-01AL-THHN

3/0

0.423

10.74

0.050

1.27

0.007

0.18

0.537

13.64

210

175

4/0-01AL-THHN

4/0

0.476

12.09

0.050

1.27

0.007

0.18

0.589

14.96

257

205

250-01AL-THHN

250

0.520

13.21

0.060

1.52

0.008

0.20

0.656

16.66

311

230

300-01AL-THHN

300

0.571

14.50

0.060

1.52

0.008

0.20

0.706

17.93

365

255

350-01AL-THHN

350

0.614

15.60

0.060

1.52

0.008

0.20

0.752

19.10

418

280

400-01AL-THHN

400

0.657

16.69

0.060

1.52

0.008

0.20

0.795

20.19

471

305

500-01AL-THHN

500

0.736

18.69

0.060

1.52

0.008

0.20

0.872

22.15

576

350

600-01AL-THHN

600

0.816

20.73

0.070

1.78

0.009

0.23

0.971

24.66

700

385

700-01AL-THHN

700

0.877

22.28

0.070

1.78

0.009

0.23

1.035

26.29

804

420

750-01AL-THHN

750

0.909

23.09

0.070

1.78

0.009

0.23

1.066

27.08

856

435

900-01AL-THHN

900

0.999

25.37

0.070

1.78

0.009

0.23

1.139

28.93

1013

480

1000-01AL-THHN

1000

1.059

26.90

0.070

1.78

0.009

0.23

1.218

30.94

1117

500

DAYA THHN-THWN-2 Electric Wire Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA THHN-THWN-2 Electric Wire FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.


2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.


3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.


4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.


5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, custom
