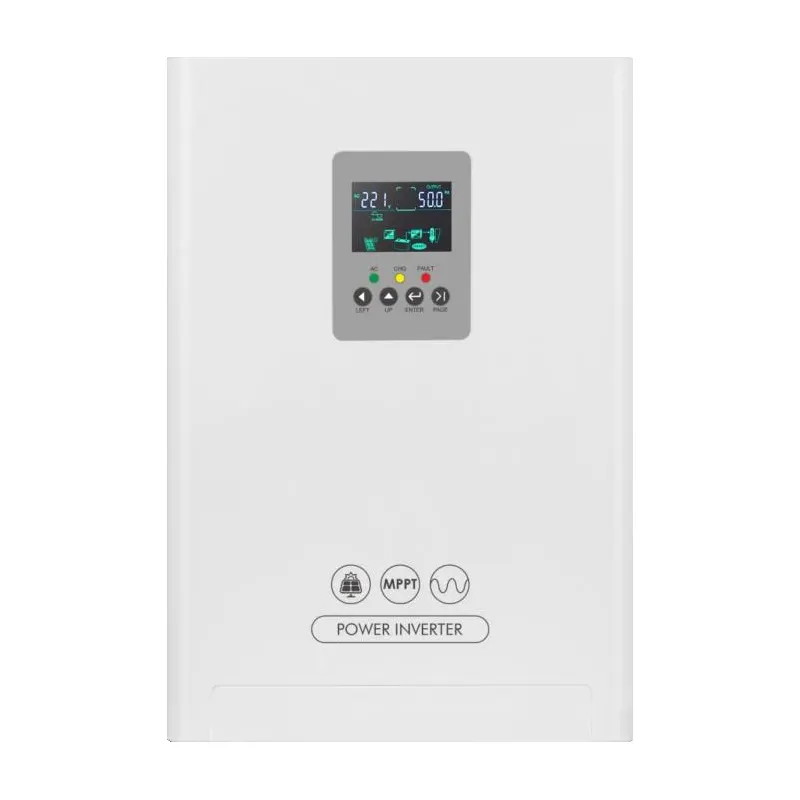

Purchase a premium Solar Inverter for Home Wall use at a budget-friendly price.
The Solar Inverter we offer is an efficient, high-performance device specifically designed for wall installation, ideal for both home and commercial use. It expertly transforms solar energy into usable electricity, meeting a wide range of power needs.
Built with top-notch components and cutting-edge technology, this inverter guarantees long-lasting, dependable service. It seamlessly converts DC power from solar panels into AC electricity, ready for use in various electrical devices and appliances.
This Solar Inverter boasts advanced safety measures, such as automatic shutdown in case of voltage fluctuations, protecting both the inverter and your connected devices. Plus, its user-friendly display panel gives you real-time updates on its status, performance, and energy output.
What's more, this inverter works seamlessly with different solar panel systems, making it a versatile choice for any installation. Whether you're setting up a small home solar system or a large-scale commercial one, this inverter delivers reliable, efficient power conversion.
In a nutshell, our Solar Inverter for Home Wall is a top-quality, compact device that offers exceptional solar energy conversion and safety features. It's the perfect choice for anyone looking to harness solar power and reduce reliance on traditional energy sources.
Our Solar Inverter for Home Wall stands out with its array of impressive features:
Compact Design: Its wall-mounted design saves space, ideal for limited or valuable floor areas.
Efficient Conversion: It effortlessly converts DC power from solar panels to AC electricity, minimizing energy loss and maximizing efficiency.
Safety Features: Protection against voltage fluctuations, overloads, and short circuits ensures safe, reliable operation.
Easy Monitoring: Many models feature an intuitive display for effortless monitoring of status, performance, and energy production.
Wide Compatibility: Works with various solar panel types, offering flexibility in installation and use.
Durability: Made from high-quality components for long-lasting performance in different environments.
In conclusion, our Solar Inverter for Home Wall combines compactness, efficiency, safety, ease of monitoring, compatibility, and durability. These attributes make it an excellent choice for both residential and commercial solar energy systems.
PARAMETER | |||
Model | PW3200 | PW5000 | |
Rated power | 3200W | 5000W | |
Standard voltage | 24VDC | 48VDC | |
Installation | Wall mount installation | ||
PV PARAMETER | |||
Working model | MPPT | ||
Rated PV input voltage | 360VDC | ||
MPPT tracking voltage range | 120-450V | ||
Max input voltage (VOC) at lowest temperature | 500V | ||
Max input power | 4000W | 6000W | |
Number of MPPT tracking paths | 1 Path | ||
INPUT | |||
DC input voltage range | 21-30VDC | 42-60VDC | |
Rated mains power input voltage | 220/230/240VAC | ||
Grid power input voltage range | 170~280VAe(UPS model)/120-280VAC(inverter model) | ||
Grid input frequency range | 40~55Hz(50Hz) 55-65Hz(60Hz) | ||
OUTPUT | |||
Inverter | Output efficiency | 94% | |
Outputvoltage | 220VAC±2%/230VAC±2%/240VAC±2%(lnverter model) | ||
Output frequency | 50Hz±0.5or60Hz±0.5(lnverter model) | ||
Grid | Output efficiency | >99% | |
Output voltage range | Following input | ||
Output frequency range | Following input | ||
Battery mode no-load loss | W1 % (At rated power) | ||
Grid mode no-load loss | <0.5% Rated power(the charger of grid power doesn't work) | ||
BATTERY | |||
Battery type | Lead acid battey | Equalizing charging 13.8V Floating charging 13.7V (single battery voltage) | |
Customized battery | The parametercan be set according to customers* requirement (Use different types of battery by setting the panel) | ||
Max mains charging current | 60A | ||
Max PVcharging current | 100A | ||
Max charging current(Grid+PV) | 100A | ||
Charging method | Three-stage (constant current, constant voltage, float charge) | ||
PROTECTED MODE | |||
Battery low voltage range | Battery low voltage protection value +0.5V (Single battery voltage) | ||
Battery voltage protection | Factory default: 10.5V (Single battery voltage) | ||
Battery overvoltage alarm | Equal charging voltage +0.8V (Single battery voltage) | ||
Battery overvoltage protection | Factory default: 17V (Single battery voltage) | ||
Battery overvoltage recovery Voltage | Battery overvoltage protection value -1V (Single battery voltage) | ||
Overload /short circuit protection | Automatic protection (battery mode), circuit breaker or fuse (Grid mode) | ||
Temperature protection | >90*C off output | ||
PERFORMANCE PARAMETERS | |||
Conversion time | W4ms | ||
Cooling method | Intelligent cooling fan | ||
Working temperature | -10-40℃ | ||
Storage temperature | -15-60℃ | ||
Altitude | 2000m(>2000m altitude need derating) | ||
Humidity | 0-95% (No condensation) | ||
Product Size | 420*290*110mm | 460*304*110mm | |
Package Size | 486*370*198mm | 526*384*198mm | |
Net weight | 8. 5kg | 9.5kg | |
Gross weight | 9. 5kg | 10. 5kg |
