SEU Aluminum Service Entrance Cable

What Is a Service Entrance Cable?

Service Entrance (SE) cables are electrical cables that bring power from electrical companies to residential buildings and our homes. The National Electric Code (NEC) indicates that service entrance cables are essentially used for services. SER and SEU are two common types of SE cables. These electrical cables are rated 600 volts and are suitable for both dry and moist applications. Both SER and SEU are flame-retardant and resistant to moisture. Both cables may have RHW, RHW-2, XHHW, XHHW-2, or THWN or THWN-2 conductors, depending on the particular product.

One noticeable issue that the customer wishing to purchase SER or SEU always stumbles upon is confusion about what those two abbreviations mean due to misinformation online. Luckily, distinguishing between the two types is relatively easy once you let go of all misinformation. So, let us settle the confusion once and for all.

Basically, SER is a round service electrical cable that typically has up to four conductors and a bare neutral. The cable is designed to use above the ground in feeder panels and branch circuits.

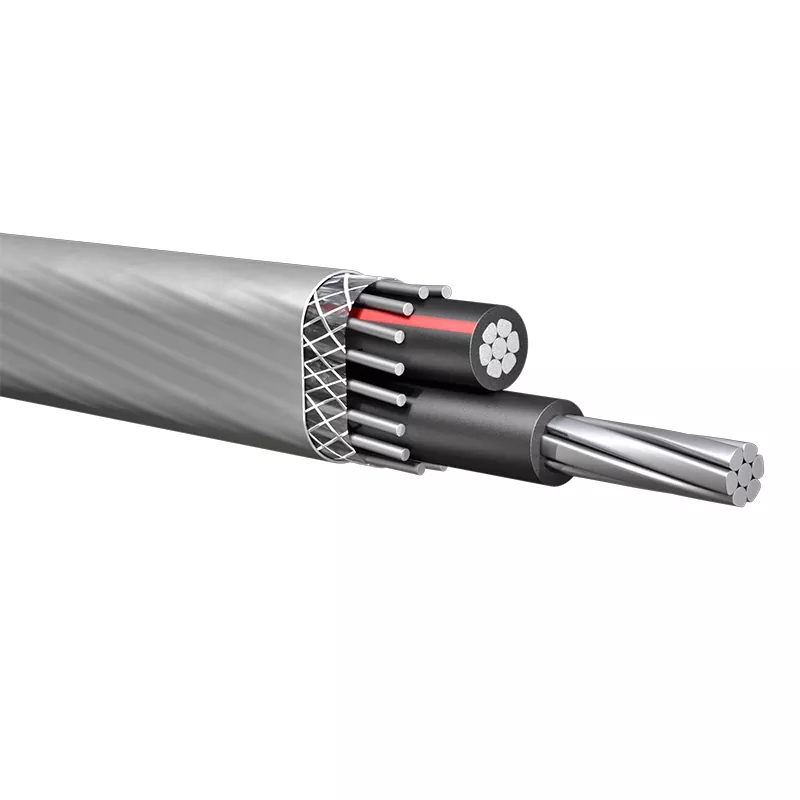

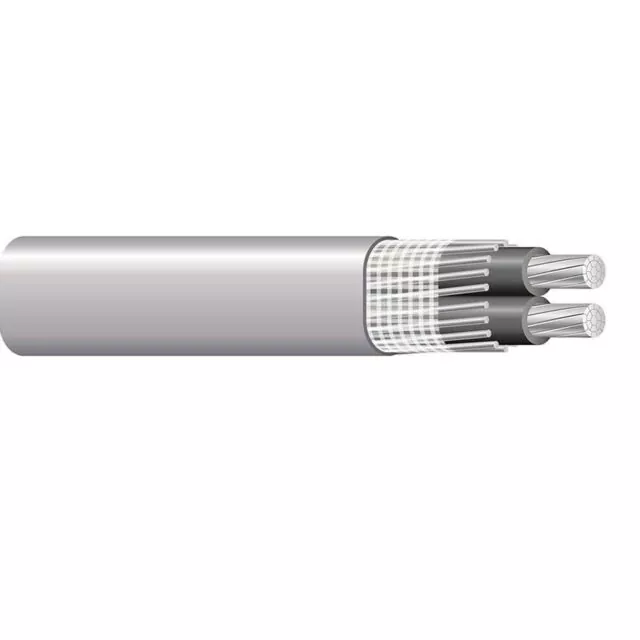

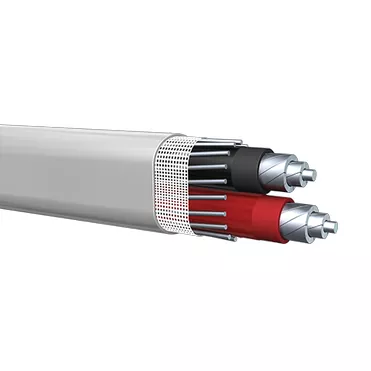

SEU is an unarmored Style U flat service electrical cable with two-phase conductors and a concentric neutral. SEU typically has an oval shape because of the stranded neutral conductors that wrap around the cable to create an oval shape. Like SER, The cable is mostly used as a panel feeder in multi-family residential buildings and branch circuits.

Important! SEU cable is sometimes called an underground service cable online, which is not true. Neither SEU nor SER is rated for use underground. The only similar cable that is suitable for the underground is USE.

Different Purposes of SER and SEU

So, both cables are used in feeder cables and branch circuits. Then, what is the real difference between their applications?

Despite their similarities, SER and SEU have different anatomy that determines that they should be used during different steps of your electrical project. SEU cable has a neutral conductor, but does not have a ground conductor. Since neutral conductors and ground conductors are connected at the point of service disconnect, SEU cables can only be used up to the service disconnect to avoid significant safety concerns. Meanwhile, SER cables are equipped with neutral and ground conductors, which makes them perfect for use after the service disconnect. The National Electrical Code requires neutral and ground wires to be separated when feeding a panel, so using service ground cables in the way indicated above is crucial to meet NEC's requirements.

The Installation of Service Entrance Cables: Things You Need To Know

It is generally required for a service cable to be installed by a professional. However, if you would like to know more about the installation, you should keep in mind a couple of things. The bare neutral conductor of a SER cable has to be fastened both at the end of the utility pole and the service pole. You can use the combination of an insulator and an archer bolt to attach it efficiently. As a result of this manipulation, the neutral cable and two hot conductors are left for splicing. The ends of the neutral conductor and the two hot conductors are then connected to the service entrance cable, which is pulled through a protective metal hood called "the waterhead." In the installation process, one should allow a 36-inches drip loop that prevents the water from entering. Please remember that the lack of a drip loop may result in corrosion or a short circuit.

Choosing a Service Entrance Cable

Now that you know all the basics about SER and SEU cables, the last step is to choose the cable that works for your particular electrical project. At Nassau National Cable, we sell service entrance cables with aluminum and copper conductors. Aluminum service entrance cables are cheaper, lighter, and generally easier to install, whereas copper cables are more durable with superior electric conductivity. Both aluminum and copper electrical cables are of excellent quality, so the choice boils down essentially to the priorities of your particular electrical project. Visit our website to learn more about SEU and SER service entrance cables. Some of the most common service entrance cables we sell are Aluminum SER Service Entrance Type R Cable, Aluminum SEU cable, Copper SER Cable, and Copper SEU cable

DAYA SEU Aluminum Service Entrance Cable Details

DAYA SEU Aluminum Service Entrance Cable Working conditions

Application

Southwire Type SE, Style SEU service entrance cable is primarilty used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard; however, it may be used in all applications where Type SE cable is permitted. SE may be used in wet or dry above ground locations at temperatures not to exceed 90°C. The voltage rating is 600 volts.

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA SEU Aluminum Service Entrance Cable Parameter (Specification)

DAYA SEU Aluminum Service Entrance Cable Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA SEU Aluminum Service Entrance Cable FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
