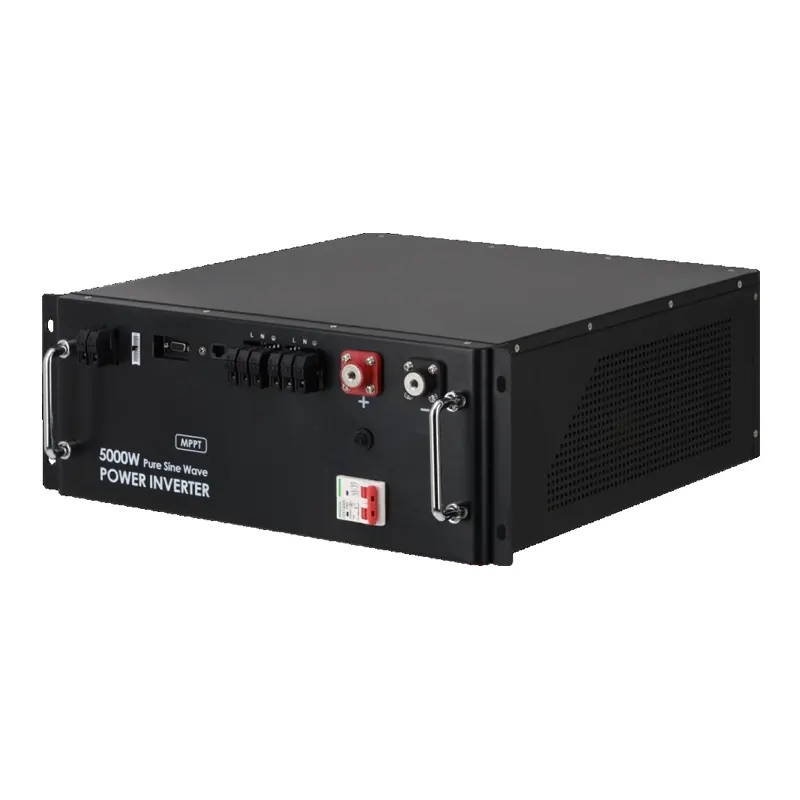

Rack Mount Solar Inverter
Rest assured, when you purchase our Rack Mount Solar Inverter, you're getting not just a product but also our commitment to superior after-sales service and punctual delivery. Our team is committed to your satisfaction and will always strive to address any concerns or challenges that might come up.
Send Inquiry
Product Description
You can rest assured to buy Rack Mount Solar Inverter from DAYA factory and we will offer you the best after-sale service and timely delivery.
Rack Mount Solar Inverter: The Ultimate Solution for Solar Energy Conversion
Introducing our cutting-edge Rack Mount Solar Inverter, a premium device tailored to harness solar energy and transform it into usable electricity with remarkable efficiency. Encased in a robust rack cabinet, it offers exceptional durability, making it a prime choice for outdoor applications.
This inverter is engineered to maximize the performance of solar panels, converting a higher percentage of solar energy into electrical power. Its intelligent control system ensures uninterrupted and stable operation, regardless of the weather conditions.
Furthermore, it boasts a user-centric interface, simplifying the monitoring and control of your solar system. Additionally, it incorporates robust protective measures such as overvoltage, overcurrent, and short-circuit protection, safeguarding your system and connected equipment.
Whether you're embarking on a residential solar project or a large-scale commercial installation, our Rack Mount Solar Inverter is the ideal solution. It offers reliability, high efficiency, and a long-lasting lifespan, delivering a cost-effective approach to harnessing solar energy.
Backed by our commitment to stellar after-sales service and prompt delivery, investing in our Rack Mount Solar Inverter guarantees you the best value for your money. Get in touch with us today to discover more about this revolutionary solar energy solution.
The Rack Mount Solar Inverter stands as a unique solar inverter designed specifically for rack cabinet installation. Here are some of its distinguishing characteristics:
Optimal Efficiency: This inverter boasts a high efficiency rate, efficiently transforming solar energy into usable electricity.
Minimal Upkeep: Due to its robust and high-grade components, the Rack Mount Solar Inverter requires minimal maintenance and boasts a long lifespan.
Intuitive Interface: Monitoring and adjusting performance settings is a breeze with its user-friendly interface.
Robust Safety Measures: This inverter includes safety features like overload and short-circuit protection, safeguarding the inverter and the electrical system.
Broad Compatibility: It can be seamlessly integrated with a wide array of solar panel systems and other components to form a comprehensive solar power solution.
Space-Efficient Design: Its rack mount design optimizes space utilization, making it a prime choice for residential or commercial installations with space constraints.
In summary, the Rack Mount Solar Inverter is a dependable and efficient solution for harnessing solar energy. Its advanced features and extensive compatibility render it a top choice for various solar panel systems, while its intuitive interface and robust safety measures guarantee a smooth and secure operation.
| PARAMETER | |||
| Model | PC3200 | PC5000 | |
| Rated power | 3200W | 5000W | |
| Standard voltage | 24VDC | 48VDC | |
| Installation | Cabinet/rack installation | ||
| PV PARAMETER | |||
| Working model | MPPT | ||
| Rated PV input voltage | 360VDC | ||
| MPPT tracking voltage range | 120-450V | ||
|
Max input voltage (VOC) at lowest temperature |
500y | ||
| Max input power | 4000W | 6000W | |
| Number of MPPT tracking paths | 1Path | ||
| INPUT | |||
| DC input voltage range | 21-30VDC | 42-60VDC | |
| Rated mains powerinput voltage | 220/230/240VAC | ||
| Grid power input voltage range | 170~280VAC(UPS model)/120~280VAC(inverter model) | ||
| Grid input frequency range | 40~55Hz(50Hz) 55~65Hz(60Hz) | ||
| OUTPUT | |||
| Inverter | Output efficiency | 94% | |
| Output voltage | 220VAC±2%/230VAC±2%/240VAC±2%(Inverter model) | ||
| Output frequency | 50Hz±0.5 or 60Hz±0.5(Inverter model) | ||
| Grid | Output efficiency | ≥99% | |
| Output voltage range | Followin g input | ||
| Output frequency range | Followin g in put | ||
| Battery mode no-load loss | ≤1%(At rated power) | ||
| Grid mode no-load loss | ≤0.5% Rated power(the charger of grid power doesn'twork) | ||
| BATTERY | |||
|
Battery type |
Lead acid battey | Equalizing charging 13.8V Floating charging 13.7V(single battery voltage) | |
| Customized battery |
The parameter can be set according to customers'requirement (Use different types of battery by setting the panel) |
||
| Max mains chargin g current | 60A | ||
| Max PV charging current | 100A | ||
| Max charging current(Grid+PV) | 100A | ||
| Charging method | Three-stage (constant current, constant voltage, float charge) | ||
| PROTECTED MODE | |||
| Battery low voltage range | Batterylow voltage protection value+0.5V(Single battery voltage) | ||
| Battery voltage protection | Factory default: 10.5V(Single battery voltage) | ||
| Battery over voltage alarm | Equal charging voltage +0.8V(Single battery voltage) | ||
| Battery over voltage protection | Factory default: 17V(Single battery voltage) | ||
| Battery over voltage recovery Voltage | Battery over voltage protection value-1V(Single battery voltage) | ||
| Overload /shortcircuit protection | Automatic protection(battery mode), circuit breaker or fuse(Grid mode) | ||
| Temperature protection | ≥90℃ off output | ||
| PERFORMANCE PARAMETERS | |||
| Conversion time | ≤4ms | ||
| Cooling method | Intelligent cooling fan | ||
| Working temperature | -10~40℃ | ||
| Storage temperature | -15~60℃ | ||
| Altitude | 2000m(>2000m altitude need derating) | ||
| Humidity | 0~95%(No condensation) | ||
| Product Size | 440*495*178mm | 440*495*178mm | |
| Package Size | 486*370*198mm | 526*384*198mm | |
| Net weight | 8.5kg | 9.5kg | |
| Gross weight | 9.5kg | 10.5kg | |
