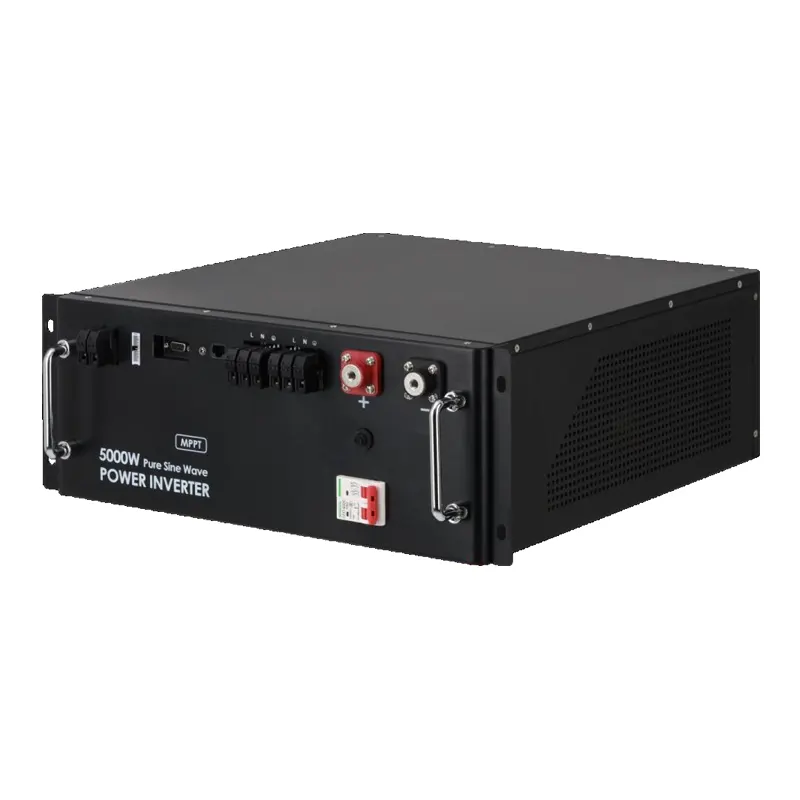

Rack Cabinet Solar Inverter: The Ultimate Solution for Solar Energy Conversion
Introducing our Rack Cabinet Solar Inverter, a state-of-the-art device designed to efficiently convert solar energy into usable power. This inverter is housed in a sturdy rack cabinet, ensuring maximum protection and durability, making it ideal for outdoor installations.
The Rack Cabinet Solar Inverter features a high-efficiency design that maximizes the output of solar panels, converting more of the sun's energy into electricity. Its intelligent control system ensures smooth and stable operation, even under varying weather conditions.
Moreover, our inverter offers a user-friendly interface, allowing for easy monitoring and control of the solar system. It also provides a range of protection features, including overvoltage, overcurrent, and short-circuit protection, to ensure the safety of the system and connected equipment.
Whether you're installing a residential solar system or a commercial-scale project, our Rack Cabinet Solar Inverter is the perfect choice. It offers reliable performance, exceptional efficiency, and a long service life, making it a cost-effective solution for harnessing the power of the sun.
Backed by our commitment to providing the best after-sale service and timely delivery, you can rest assured that you're getting the best possible value when you choose our Rack Cabinet Solar Inverter. Contact us today to learn more about this innovative solar energy solution.
Rack Cabinet Solar Inverter is a type of solar inverter that is designed to be installed in a rack cabinet. It has several features that set it apart from other types of solar inverters:
High efficiency: Rack Cabinet Solar Inverter has a high efficiency rate, converting more of the solar energy generated into usable electricity.
Low maintenance: It requires minimal maintenance and has a long service life, thanks to its durable and high-quality components.
User-friendly interface: The inverter has a user-friendly interface that makes it easy to monitor and adjust performance settings.
Safety features: Rack Cabinet Solar Inverter has several safety features, such as built-in overload protection and short-circuit protection, to protect both the inverter and the electrical system.
Compatibility: It is compatible with a wide range of solar panel systems and can be integrated with other components to create a complete solar power system.
Space-saving design: The rack cabinet design of the inverter allows for space-saving installation, making it an ideal choice for residential or commercial applications with limited space.
Overall, Rack Cabinet Solar Inverter is a reliable and efficient option for converting solar energy into usable electricity. Its advanced features and compatibility make it an ideal choice for a variety of solar panel systems, while its user-friendly interface and safety features ensure a hassle-free and secure operation.
PARAMETER | |||
Model | PC3200 | PC5000 | |
Rated power | 3200W | 5000W | |
Standard voltage | 24VDC | 48VDC | |
Installation | Cabinet/rack installation | ||
PV PARAMETER | |||
Working model | MPPT | ||
Rated PV input voltage | 360VDC | ||
MPPT tracking voltage range | 120-450V | ||
Max input voltage (VOC) at lowest temperature |
500y | ||
Max input power | 4000W | 6000W | |
Number of MPPT tracking paths | 1Path | ||
INPUT | |||
DC input voltage range | 21-30VDC | 42-60VDC | |
Rated mains powerinput voltage | 220/230/240VAC | ||
Grid power input voltage range | 170~280VAC(UPS model)/120~280VAC(inverter model) | ||
Grid input frequency range | 40~55Hz(50Hz) 55~65Hz(60Hz) | ||
OUTPUT | |||
Inverter | Output efficiency | 94% | |
Output voltage | 220VAC±2%/230VAC±2%/240VAC±2%(Inverter model) | ||
Output frequency | 50Hz±0.5 or 60Hz±0.5(Inverter model) | ||
Grid | Output efficiency | ≥99% | |
Output voltage range | Followin g input | ||
Output frequency range | Followin g in put | ||
Battery mode no-load loss | ≤1%(At rated power) | ||
Grid mode no-load loss | ≤0.5% Rated power(the charger of grid power doesn'twork) | ||
BATTERY | |||
Battery type |
Lead acid battey | Equalizing charging 13.8V Floating charging 13.7V(single battery voltage) | |
Customized battery |
The parameter can be set according to customers'requirement (Use different types of battery by setting the panel) |
||
Max mains chargin g current | 60A | ||
Max PV charging current | 100A | ||
Max charging current(Grid+PV) | 100A | ||
Charging method | Three-stage (constant current, constant voltage, float charge) | ||
PROTECTED MODE | |||
Battery low voltage range | Batterylow voltage protection value+0.5V(Single battery voltage) | ||
Battery voltage protection | Factory default: 10.5V(Single battery voltage) | ||
Battery over voltage alarm | Equal charging voltage +0.8V(Single battery voltage) | ||
Battery over voltage protection | Factory default: 17V(Single battery voltage) | ||
Battery over voltage recovery Voltage | Battery over voltage protection value-1V(Single battery voltage) | ||
Overload /shortcircuit protection | Automatic protection(battery mode), circuit breaker or fuse(Grid mode) | ||
Temperature protection | ≥90℃ off output | ||
PERFORMANCE PARAMETERS | |||
Conversion time | ≤4ms | ||
Cooling method | Intelligent cooling fan | ||
Working temperature | -10~40℃ | ||
Storage temperature | -15~60℃ | ||
Altitude | 2000m(>2000m altitude need derating) | ||
Humidity | 0~95%(No condensation) | ||
Product Size | 440*495*178mm | 440*495*178mm | |
Package Size | 486*370*198mm | 526*384*198mm | |
Net weight | 8.5kg | 9.5kg | |
Gross weight | 9.5kg | 10.5kg |
