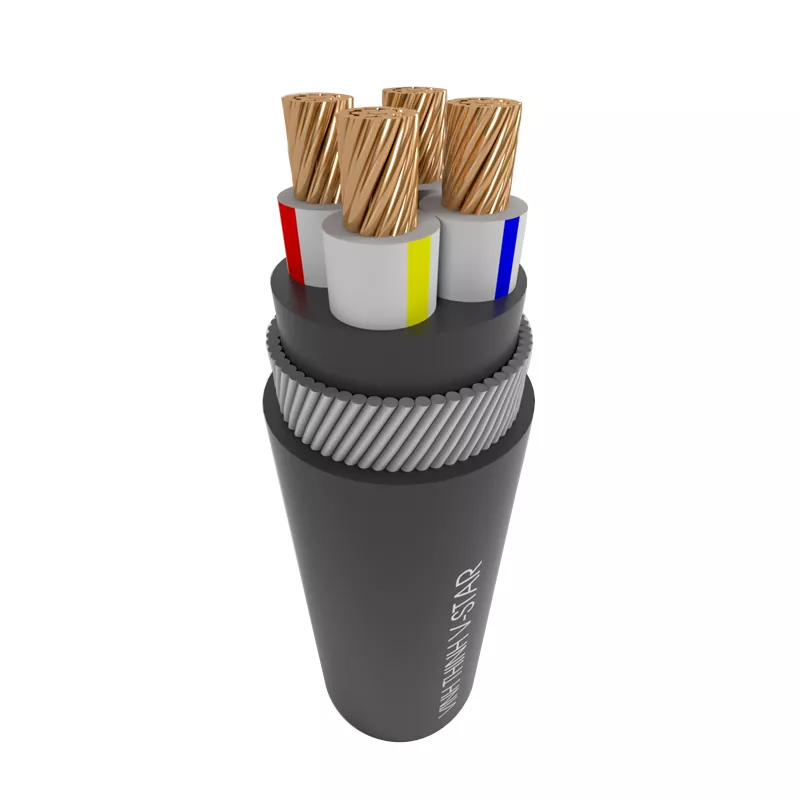

PVC Sheathed Cable

DAYA electrical is a large-scale PVC Sheathed Cable manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.Polyvinyl Chloride (PVC) insulated and sheathed cables are used in a wide variety of applications from fixed wiring to flexible installations, and are available in a number of sizes, colours and conductor materials

As PVC is a thermoplastic polymer, PVC properties make it suitable for applications where the cables may be exposed to high or low temperatures (including use of arctic-grade PVC for extreme low conditions), or where protection against UV light is required to avoid degradation. PVC insulation is frequently used owing to its good insulating properties but low corona resistance, and is best suited for low and medium voltage cables and low frequency insulation requirements.

The benefits of PVC as cable insulation and sheathing material include its chemical stability, robustness and durability.

PVC Cable products

Eland Cables supplies a wide range of PVC cable products manufactured in accordance with various international standards. Some of the most commonly requested cables in our portfolio include:

	Application overview
Twin & Earth cable (624Y)	Mains electricity wiring
Tri-rated cable	Switchgear and panel wire manufactured to UL, CSA and British Standard
2491X cable (H05V-K / H07V-K)	Flexible panel wire
218Y cable (H03VV-F)	Domestic and office power supply
2192Y cable (H03VVH2-F)	General wiring in public areas
309Y cable (H05V2V2-F)	Portable tools power supply
318Y cable (H05VV-F)	Domestic appliance power supply
318A cable (Arctic grade)	Low temperature resistant power supply
6381Y cable	Power, lighting and internal wiring cable. Also suitable for AC and DC telecommunications applications.
Twinflex cable	Battery cable
Elevator flatform cable	For lifts and elevators

In addition to the electrical cables listed above and the other standard PVC wire in our portfolio, you may have geo-specific cable requirements, for instance your Australian project may require 5000.2 PVC 450/750V cables. Our technical engineers can help you identify the right cable standards, relevant international IEC standards (where appropriate) and even develop a customised cable solutions designed and manufactured to meet your application's specific requirements.

DAYA PVC Sheathed Cable Details

DAYA PVC Sheathed Cable Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA PVC Sheathed Cable Parameter (Specification)

Nominal cross sectional area		ELECTRICALDATA							DIMENSIONS AND WEIGHTS		Cable Code
		Max.Conductor Resistance		Continuous Current Ratings					Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 90 °C	Laid in ground			Laid in ducts	Laid in free air	Approx. overall diameter	Approx. overall weight
mm²		Ω / km	Ω / km	A			A	A	mm	kg / km
Two CoreCables
1.5	rm 12.1000 15.4287 33						24	29	13.1	340	C208XA1020WMB01IMR
2.5	rm	7.4100	9.4485	42			31	38	14.0	395	C210XA1020WMB01IMR
4	rm	4.6100	5.8783	55			40	51	15.1	465	C212XA1020WMB01IMR
6	rm	3.0800	3.9274	68			50	64	16.2	550	C213XA1020WMB01IMR
10	rm	1.8300	2.3336	90			67	87	18.3	775	C314XA1020WMB01IMR
16	rm	1.1500	1.4667	116			87	114	20.3	990	C315XA1020WMB01IMR
25	rm	0.7270	0.9275	151			114	154	24.1	1465	C316XA1020WMB01IMR
35	rm	0.5240	0.6688	180			138	188	26.2	1780	C317XA1020WMB01IMR
Three Core Cables
1.5	rm 12.1000 15.4287 27					19		24	13.6	365	C208XA1030WMB04IMR
2.5	rm	7.4100	9.4485	35				32	14.6	435	C210XA1030WMB04IMR
4	rm	4.6100	5.8783	45		33		42	15.7	520	C212XA1030WMB04IMR
6	rm	3.0800	3.9274	56				53	17.0	630	C213XA1030WMB04IMR
10	rm	1.8300	2.3336	75		56		73	19.6	885	C314XA1030WMB04IMR
16	rm	1.1500	1.4667	96				96	21.8	1140	C315XA1030WMB04IMR
25	rm	0.7270	0.9275	125		95		130	25.8	1675	C316XA1030WMB04IMR
35	sm	0.5240	0.6688	142				145	25.2	1880	C417XA1030WMB04IMR
50	sm	0.3870	0.4944	169		132		177	28.4	2385	C418XA1030WMB04IMR
70	sm	0.2680	0.3431	206				222	33.1	3385	C419XA1030WMB04IMR
95	sm	0.1930	0.2481	246		197		271	36.7	4320	C445XA1030WMB04IMF
120	sm	0.1530	0.1976	279				314	40.0	5190	C446XA1030WMB04IMF
	Four					Core Cables
1.5	rm 12.1000 15.4287 27							24	14.4	410	C208XA1040WMB08IMR
2.5	rm	7.4100	9.4485	35		25		32	15.5	490	C210XA1040WMB08IMR
4	rm	4.6100	5.8783	45				42	16.8	600	C212XA1040WMB08IMR
6	rm	3.0800	3.9274	56		41		53	19.0	855	C213XA1040WMB08IMR
10	rm	1.8300	2.3336	75				73	20.9	1045	C314XA1040WMB08IMR
16	rm	1.1500	1.4667	96		72		96	24.1	1490	C315XA1040WMB08IMR
25	rm	0.7270	0.9275	125				130	27.8	2025	C316XA1040WMB08IMR
35	sm	0.5240	0.6688	142		109		145	28.4	2370	C417XA1040WMB08IMR
50	sm	0.3870	0.4944	169				177	32.1	3000	C418XA1040WMB08IMR
70	sm	0.2680	0.3431	206		163		222	37.6	4285	C419XA1040WMB08IMR
95	sm	0.1930	0.2481	246				271	40.3	5410	C445XA1040WMB08IMF
120	sm	0.1530	0.1976	279		226		314	45.8	7000	C446XA1040WMB08IMF
150	sm	0.1240	0.1612	311				356	50.3	8370	C447XA1040WMB08IMF
185	sm	0.0991	0.1302	349		290		407	55.3	10110	C448XA1040WMB08IMS
240	sm	0.0754	0.1012	400				470	61.5	12720	C449XA1040WMB08IMS
300	sm	0.0601	0.0829	446		378		541	67.1	15450	C450XA1040WMB08IMS
400	sm	0.0470	0.0676	499				620	77.4	20280	C451XA1040WMB08IMS
500	sm	0.0366	0.0561	546		474		695	85.1	25405	C452XA1040WMB08IMS
Four Core Cables with Reduced Neutral
25 rm	16rm 0.7270 / 1.1500 0.9275 / 1.4667 125					95		130	26.9	1905	C334XA1040WMB08IMR
35sm	16rm 0.5240 / 1.1500 0.6688 / 1.4667				142			145	28.2	2210	C435XA1040WMB08IMR
50sm	25rm 0.3870 / 0.7270 0.4944 / 0.9275 169					132		177	31.9	2810	C436XA1040WMB08IMR
70sm	35sm 0.2680 / 0.5240 0.3431 / 0.6688				206			222	36.0	3890	C437XA1040WMB08IMR
95sm	50sm 0.1930 / 0.3870 0.2481 / 0.4944 246					197		271	39.6	4925	C438XA1040WMB08IMF
120sm	70sm 0.1530 / 0.2680 0.1976 / 0.3431				279			314	42.7	6015	C439XA1040WMB08IMF
150sm	70sm 0.1240/ 0.2680 0.1612 / 0.3431 311					255		356	47.9	7495	C440XA1040WMB08IMF
185sm	95sm 0.0991 / 0.1930 0.1302 / 0.2481				349			407	52.8	9120	C441XA1040WMB08IMF
240sm	120sm 0.0754 / 0.1530 0.1012 / 0.1976 400					336		470	58.7	11375	C442XA1040WMB08IMS
300sm	150sm 0.0601 /0.1240 0.0829 / 0.1612				446			541	63.8	13755	C443XA1040WMB08IMS
400sm	185sm 0.0470 / 0.0991 0.0676 / 0.1302 499					427		620	73.0	17975	C444XA1040WMB08IMS
500sm	240sm 0.0366 / 0.0754 0.0561 / 0.1012				546			695	80.8	22485	C466XA1040WMB08IMS

DAYA PVC Sheathed Cable Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA PVC Sheathed Cable FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
