Low Voltage URD Cable

The underground residential distribution (URD) wire has a conductor made up of strands of compressed aluminum alloy 1350 series. It is insulated using cross-lined polyethylene (XLPE) that is black in color. Its phase conductors and assembled together with neutral conductors forming a twisted cord. This cord is mostly used in underground electrical wiring systems. You will often find being used in light and medium duty commercial applications. It is also commonly used to supply power in underground residential areas. The cable has a voltage rating of 600v.

The URD cable meets the standards set by the Underwriters Laboratories as well as the Insulated Cable Engineers Association (ICEA). The wire is often either installed in ducts or buried. It can be used in environments prone to water and moisture. It also performs well in dry areas. Because of its high resistance to scratching and abrasion, the wire is used in work locations where abrasion is a common occurrence.

The URD wire is made up of strands of aluminum conductor compressed 1350-H19. It is insulated using cross-linked polyethylene. The conductors are insulated and then surface printed making it easy to identify them.

What Is URD Wire?

URD wire is a specific type of building wire intended for underground, residential use.

What Does URD Mean?

URD wire stands for “Underground Residential Distribution wire”.

How Is URD Wire Applied?

URD wire is most often used as directly buried or installed in ducts for 600 volt secondary distribution.

Where Can I Shop for URD Wire?

View our selection of URD wire by clicking here.

What Are Some URD Wire Specifications?

URD wire has a construction of a concentric stranded or compressed 1350-H19 aluminum conductor, with cross-linked polyethylene insulation. Insulated conductors are surface printed, neutral triple yellow striped. Black neutrals may be specified if desired.

There are several variants of the URD wire. These include;

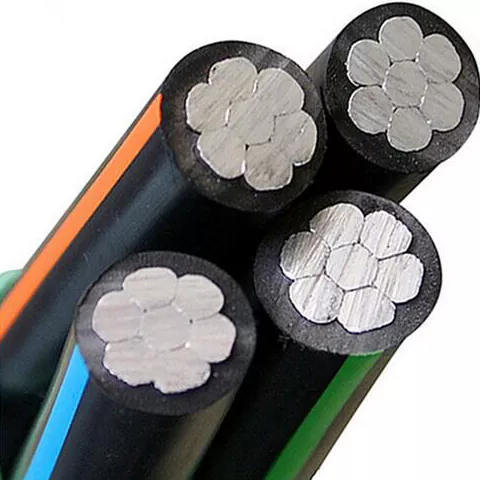

Quadruplex Aluminum URD Cable

To make this wire, 3-phase conductors are assembled together with one neutral conductor. This cable can withstand temperatures of up to 90°C.

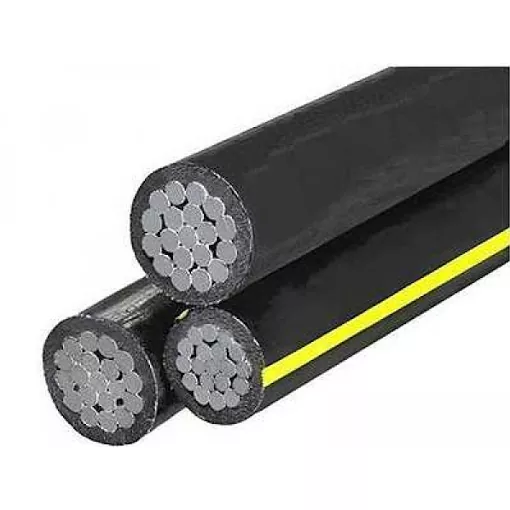

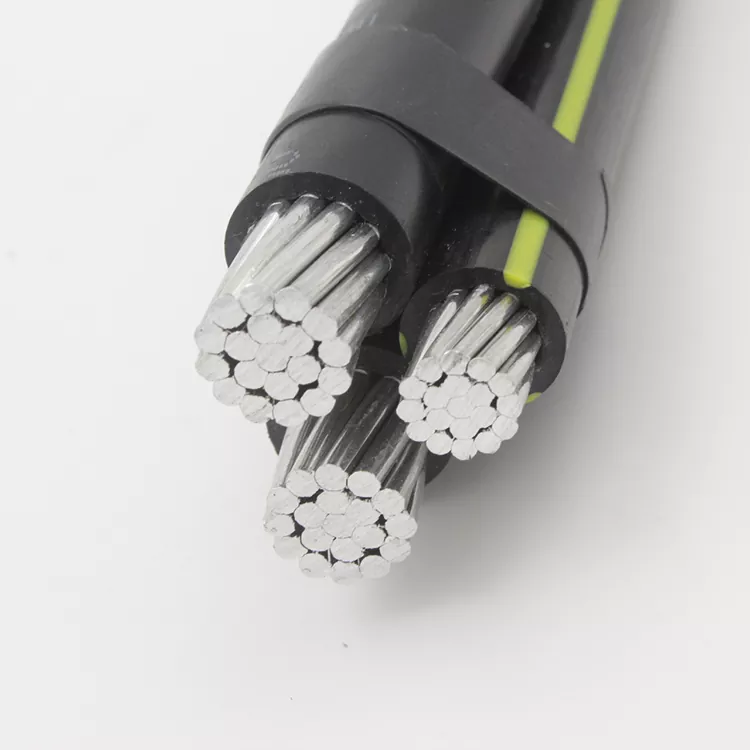

Triplex Aluminum URD Cable

This wire’s conductors are made using an aluminum alloy that has 99.5% aluminum and 0.5% silicon, copper, zinc and other such elements. These added elements make the alloy stronger.

Duplex Aluminum URD Cable

This wire is used in underground applications, especially those that use ducts and conduits. It is protected by polyethylene making it an ideal wire for many underground residential wiring. This polyethylene coat makes it possible for the wire to operate in environments whose temperatures can rise as high as 75°C.

URD Wire – Single Conductor Aluminum Cable

This wire is designed to be used in the wiring system of residential areas. These include detached & semi detached houses, row housing and town housing.

What Are Specific Examples of URD Wire?

View our URD wire sub-categories by clicking any of the links below. Nassau Electrical carries a wide selection of URD wire to meet your specifications.

1.Single Conductor Aluminum Cable Type UD

2.Duplex Aluminum Cable Type URD

3.Triplex Aluminum Cable Type URD

4.Quadruplex Aluminum Cable Type URD

5.Quadruplex Aluminum Mobile Home Feeder Wire

Below you can find some of our popular URD wire products. Nassau Electrical provides a variety of URD wire types to fulfill your needs.

1. Dyke 2-2-2-4

2. Notre Dame 1/0-1/0-1/0-2

3. Wake Forest 4/0-4/0-4/0-2/0

4. Ramapo 2-2-2

5. 2-2-4-6 Aluminum MHF Cable

DAYA  Low Voltage URD Cable   Details

DAYA  Low Voltage URD Cable     Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap,  6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA Low Voltage URD Cable    Parameter (Specification)

DAYA Low Voltage URD Cable    Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.
