L-Ess Vertical Lithium Battery Energy Storage System
  • L-Ess Vertical Lithium Battery Energy Storage System - 0 L-Ess Vertical Lithium Battery Energy Storage System - 0

L-Ess Vertical Lithium Battery Energy Storage System

We offer customized L-Ess Vertical Lithium Battery Energy Storage System that are designed to meet your specific needs and requirements. Our team is dedicated to delivering the best products and the highest level of customer service to ensure your complete satisfaction. You can trust us to provide a reliable and high-quality energy storage system that will meet your specific needs.

Send Inquiry

PDF DownLoad

Product Description

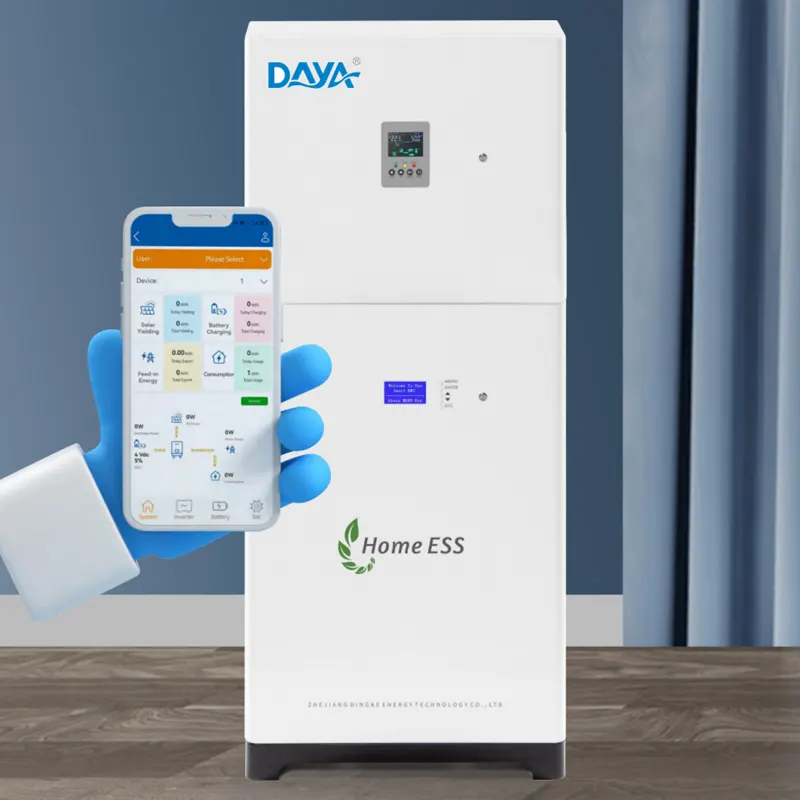

L-Ess Vertical Lithium Battery Energy Storage System is a type of energy storage system designed to store energy from renewable energy sources such as solar panels or wind turbines. It is composed of a vertical stack of lithium-ion batteries that can be configured to meet different power and energy storage requirements.



The L-Ess system provides a high energy density, meaning it can store a large amount of energy in a small footprint. It is also modular, which means it can be easily expanded or reduced to meet changing energy storage needs. The system is designed for use in residential, commercial, and industrial applications, and can be easily integrated with existing solar or wind power systems.



The L-Ess system also features advanced battery management technology, which ensures longer battery life and better performance. This technology optimizes the charge and discharge cycles of the batteries, ensuring that they are always charged to the optimal level for maximum efficiency.



Overall, the L-Ess Vertical Lithium Battery Energy Storage System is an efficient and reliable solution for storing energy from renewable sources and reducing reliance on traditional electricity sources.




The L-Ess Vertical Lithium Battery Energy Storage System has many applications in a variety of settings. Here are a few examples:




Residential Energy Storage: The L-Ess can be used in homes that have solar panels installed. During daylight hours, excess energy generated by the solar panels can be stored in the L-Ess, and then used to power the home in the evening or during periods of low solar generation.




Commercial Energy Storage: Commercial buildings with high energy demands, such as hospitals or data centers, can use the L-Ess to offset peak energy usage and reduce their reliance on grid power. This can result in significant cost savings over time.




Industrial Energy Storage: The L-Ess can be used in industrial settings to store energy generated by wind turbines or other renewable energy sources. This energy can then be used to power equipment or to support the overall energy needs of the facility.




Emergency Power Backup: The L-Ess can be used as a backup power source during power outages or other emergencies. This is especially useful for critical infrastructure like hospitals, police stations, and fire departments.





Overall, the L-Ess Vertical Lithium Battery Energy Storage System has a range of applications, making it a versatile and efficient energy storage choice for many different settings.




Model

L-ESS- 10

L-ESS- 15

L-ESS-20

Capacity

10.24KWh/5KW

15.36KWh/5KW

20.48KWh/5KW

Standard discharge current

50A

50A

50A

Max.discharge current

100A

100A

100A

Working voltage range

43.2- 57.6VDC

43.2- 57.6VDC

43.2- 57.6VDC

Standard Voltage

51.2VDC

51.2VDC

51.2VDC

Max. charging current

50A

50A

50A

Max. charging voltage

57.6V

57.6V

57.6V

Rated PV input voltage

360VDC

MPPT tracking voltage range

120V-450V

Max input voltage (VOC)

at lowest temperature

500V

Max input power

6000W

Number of MPPT tracking paths

1Path

DC input voltage range

42-60VDC

Rated mains power input voltage

220VAC/230VAC/240VAC

Grid power input voltage range

170VAC~280VAC (UPS mode) / 120VAC~280VAC (Inverter mode)

Grid input frequency range

45Hz~ 55Hz (50Hz); 55Hz~65Hz (60Hz)

Inverter output efficiency

94%( MAX)

Inverter output voltage

220VAC±2%/230VAC±2%/240VAC±2%( Inverter mode)

Inverter output frequency

50Hz±0 . 5 or 60Hz±0 .5( Inverter mode)

Inverter output waveform

Pure sine wave

Grid output efficiency

>99%

Max mains charging current

60A

Max PV charging current

100A

Max charging current (Grid+PV)

100A

Optional mode

Grid priority/PV priority/Battery priority

Warranty

5~ 10Years

Communication

Optional :RS485/RS232/CAN  WiFi/4G/Bluetooth

*Voltage, capacity, size/color customization, OEM/ODM services can be provided according to customer needs
