H05Z-K and H07Z-K Flexible 5 CU LSZH

Flexible 5 CU LSZH Cable Specification

You can rest assured to buy DAYA H05Z-K and H07Z-K Flexible 5 CU LSZH from our factory and we will offer you the best after-sale service and timely delivery. Designed for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, these single core cables can be installed in pipes or ducts, and used in the internal wiring of appliances with maximum operating temperatures of +90oC.

The 2491B / 6701B's Type EI5 thermoset LSZH insulation makes this range suitable for use in environments where smoke and toxic fumes arising in a fire may threaten life or equipment. It is therefore generally for use in public areas and government and commercial buildings.

Flexible 5 CU LSZH Voltage Rating

The harmonised cable codes denote that there are different voltages applicable to different conductor cross-sectional area sizes. The H05Z-K cables have a rated voltage of 300/500V whilst the H07Z-K cables, applicable from CSA sizes 1.5mm2 and above, have a rated voltage of 450/750V.

Flexible 5 CU LSZH Cable Datasheet

The electrical characteristics, dimensions, and cable weights are listed on the technical datasheets attached below. The asterisk in the product codes is replaced by the LSZH insulation colour code.

Additional cross sectional sizes are available for the single core 2491B cable on request - please speak to a member of the team should you require larger sizes.

Where additional support with specification is required, please speak to the technical team.

For a PVC sheathed version of this cable see our 2491X cable

Construction Table

DAYA H05Z-K& H07Z-K(Flexible 5 CU LSZH) Details

DAYA H05Z-K& H07Z-K(Flexible 5 CU LSZH) Working conditions

Application:

In pipes or ducts and internal wiring of appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce

no corrosive gases when burnt which is particularly important where electronic equipment is installed.

Construction:

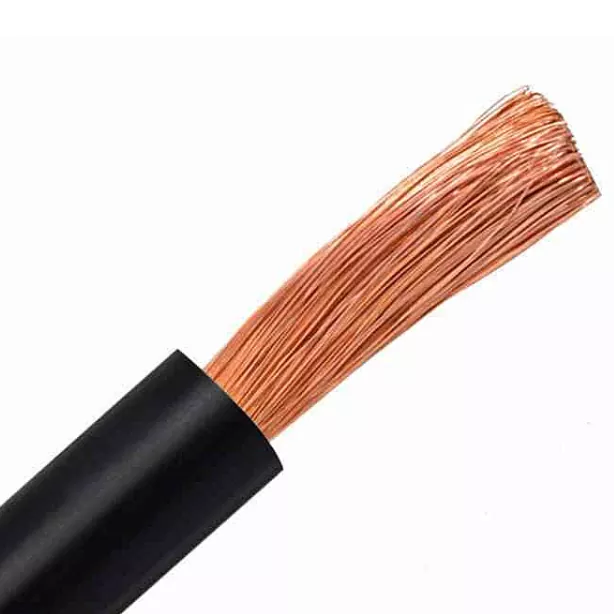

Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation according to BS EN 50363-5.

Characteristics:

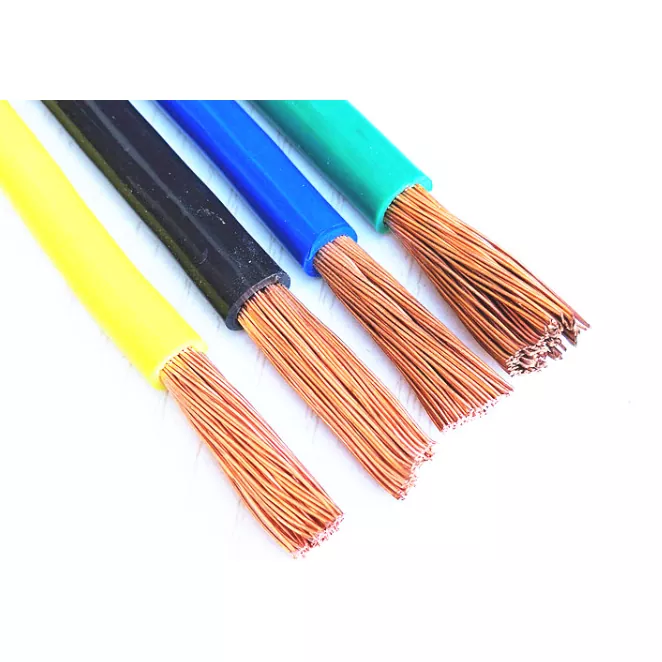

Voltage Rating (Uo/U) H05Z-K - 0.5mm2 to 1mm2 : 300/500V H07Z-K - 1.5mm2 to 6mm2 : 450/750V Temperature Rating -25°C to +90°C Minimum Bending Radius Up to 35mm2 : 4 × overall diameter 50mm2 and above : 6 × overall diameter Insulation Colour Black, Blue, Brown & Green/Yellow

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA H05Z-K& H07Z-K(Flexible 5 CU LSZH) Parameter (Specification)

DAYA H05Z-K& H07Z-K(Flexible 5 CU LSZH) Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA H05Z-K& H07Z-K(Flexible 5 CU LSZH) FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
