ACSR Bare Conductor Cable

DAYA electrical is a large-scale ACSR Bare Conductor Cable manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.

Construction :

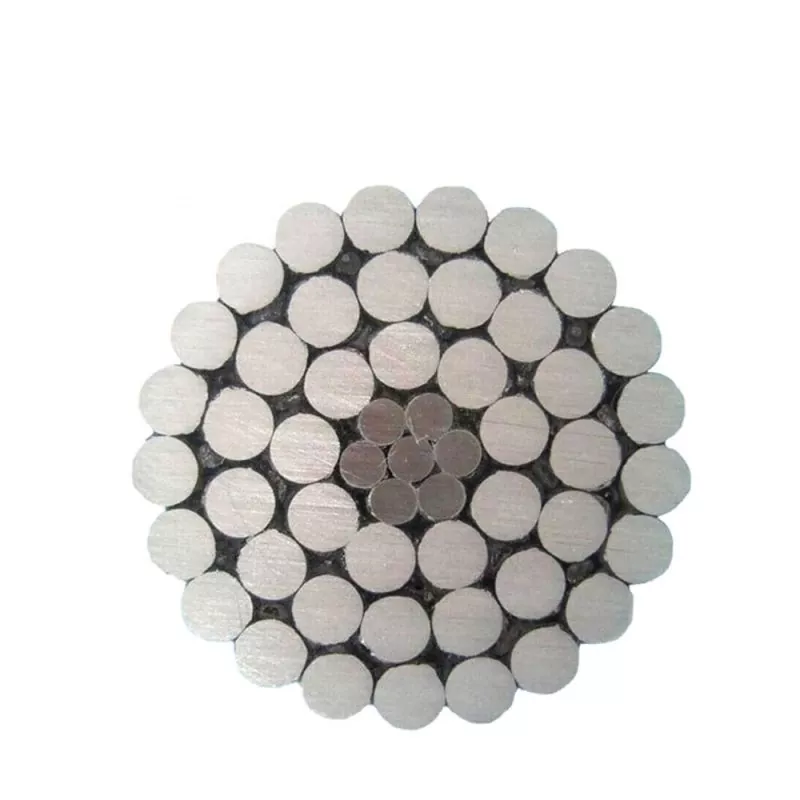

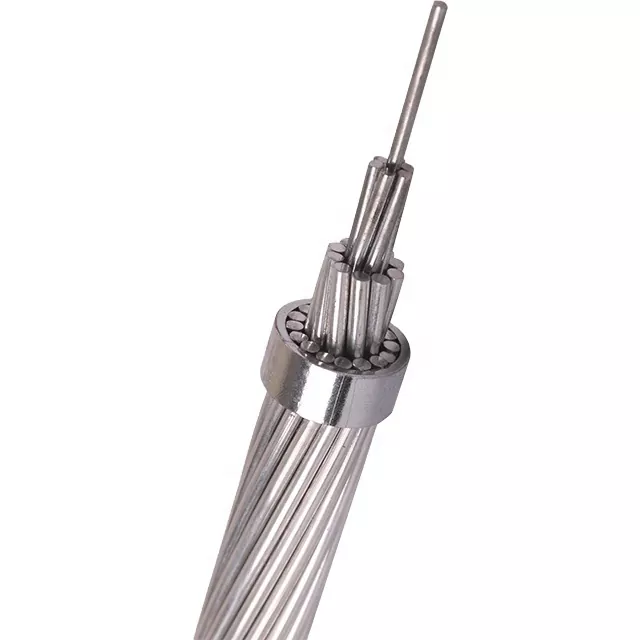

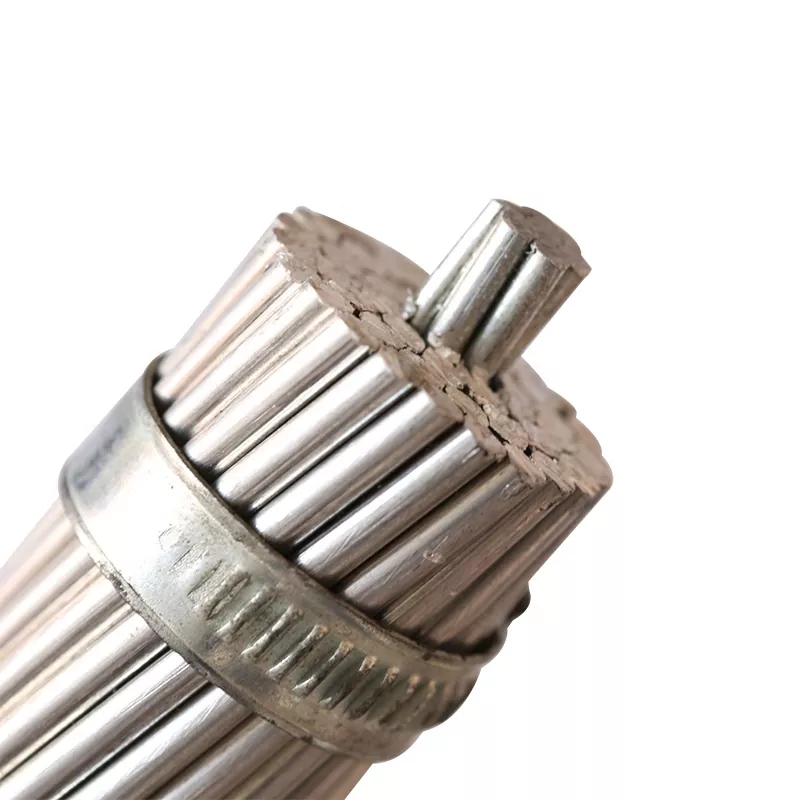

ACSR conductor are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different. The additional corrosion protection is available through the application of grease to the cores or infusion of the complete cable with grease. By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached.

Standard:

We can supply this conductor according to different recognized standards, such as IEC61089, BS215, ASTM B232, C49, DIN48204, JIS C3110, and customers’ special specifications also can be satisfied.

ACSR Conductor Standards

* ASTM B-232 * BS EN-50182

* CSAC 61089 * AS/NZS 3607

* DIN 48204 * IEC 61089

* GB/T 1179 * ASTM B711

ACSR Conductor Application

ACSR conductors have been widely used in power transmission lines with various voltage levels, because they have such good

characteristics as simple structure, convenient insulation and maintenance, low cost large transmission capacity. And they are

also suitable for laying across rivers valleys and the places where special geographical features exist.

DAYA ACSR Bare Conductor Cable Details

DAYA ACSR Bare Conductor Cable Working conditions

APPLICATION:

Used as bare overhead transmission and as primary and secondary distribution cable.

It has good characteristics such as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity. It is also suitable for laying across rivers and valleys where special geographical features exist.

ACSR/AW offers strength characteristics similar to ACSR, along with slightly greater ampacity and resistance to corrosion due to aluminum-cladding of the steel core wires.

SPECIFICATIONS:

ACSR/AW bare conductor meets or exceeds the following ASTM specifications:

• B230 Aluminum 1350-H19 Wire for Electrical Purposes.

• B502 Aluminum-Clad Steel Core Wire for Use in Overhead Electrical Aluminum Conductors.

•B549 Concentric-Lay Stranded Aluminum Conductors, Aluminum-Clad Steel Reinforced (ACSR-AW)

CONSTRUCTION:

Aluminum 1350-H19 wires, concentrically stranded around aluminum-clad steel core.

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA ACSR Bare Conductor Cable Parameter (Specification)

Code Name	Area				Equivalent copperarea		Stranding and wire diameter		Approx.overalldiameter	Weight			Rated Strength	Maximumdcresistanceat 20oC
	Aluminium		Steel	Total	Equivalent copperarea		Aluminium	Steel	Approx.overalldiameter	Aluminium	Steel	Total	Rated Strength	Maximumdcresistanceat 20oC
	AWG orMCM	mm2	mm2	mm2	AWG orMCM	mm2	mm	mm	mm	kg/km	kg/km	kg/km	kN	Ω /km
TURKEY	6	13.30	2.22	15.52	8	8.39	6/1.68	1/1.68	5.04	36.5	17	54	5.28	2.1499
THRUSH	5	16.83	2.81	19.64	7	10.58	6/1.89	1/1.89	5.67	46.0	22	68	6.68	1.6987
SWAN	4	21.18	3.53	24.71	6	13.29	6/2.12	1/2.12	6.36	58.0	27	85	8.30	1.3501
SWANATE	4	21.12	5.35	26.47	6	13.29	7/1.96	1/2.61	6.53	58.0	42	100	10.68	1.3539
SWALLOW	3	26.69	4.45	31.14	5	16.77	6/2.38	1/2.38	7.14	73.0	35	108	10.21	1.0712
SPARROW	2	33.59	5.60	39.19	4	21.16	6/2.67	1/2.67	8.01	92.0	44	136	12.69	0.8512
SPARATE	2	33.54	8.55	42.09	4	21.16	7/2.47	1/3.30	8.24	92.0	67	159	16.14	0.8525
ROBIN	1	42.41	7.07	49.48	3	26.65	6/3.00	1/3.00	9.00	116.0	55	171	15.81	0.6742
RAVEN	1/0	53.52	8.92	62.44	2	33.61	6/3.37	1/3.37	10.11	147.0	69	216	19.35	0.5343
QUAIL	2/0	67.33	11.22	78.55	1	42.39	6/3.78	1/3.78	11.34	185.0	87	272	23.27	0.4247
PIGEON	3/0	85.12	14.19	99.31	1/0	53.48	6/4.25	1/4.25	12.75	234.0	110	344	29.42	0.3359
PENGUIN	4/0	107.20	17.87	125.10	2/0	67.42	6/4.77	1/4.77	14.31	294.0	139	433	36.54	0.2667
WAXWING	266.8	135.00	7.50	142.50	3/0	85.03	18/3.09	1/3.09	15.45	372.0	59	431	30.27	0.2118
OWL	266.8	135.40	17.62	153.00	3/0	85.03	6/5.36	7/1.79	16.09	371.0	138	512	42.95	0.2112
PARTRIDGE	266.8	134.90	21.99	156.90	3/0	85.03	26/2.57	7/2.00	16.28	373.0	172	545	50.23	0.2141
OSTRICH	300	152.20	24.71	176.90	189	95.48	26/2.73	7/2.12	17.28	422.0	193	615	56.55	0.1897
MERLIN	336.4	170.20	9.46	179.70	4/0	107.23	18/3.47	1/3.47	17.35	469.0	74	543	38.17	0.1688
LINNET	336.4	170.60	27.83	198.40	4/0	107.23	26/2.89	7/2.25	18.31	473.0	217	690	62.76	0.1693
ORIOLE	336.4	170.50	39.78	210.30	4/0	107.23	30/2.69	7/2.69	18.83	474.0	311	785	77.43	0.1698
CHICKADEE	397.7	200.90	11.16	212.10	250	126.45	18/3.77	1/3.77	18.85	555.0	87	642	43.37	0.1430
BRANT	397.5	201.60	26.13	227.70	250	126.45	24/3.27	7/2.18	19.62	558.0	204	762	64.72	0.1433
IBIS	397.5	201.30	32.73	234.00	250	126.45	26/3.14	7/2.44	19.88	558.0	256	814	72.05	0.1434
LARK	397.5	200.90	46.88	247.80	250	126.45	30/2.92	7/2.92	20.44	558.0	367	925	90.30	0.1441

DAYA ACSR Bare Conductor Cable Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.
