ACS Bare Conductor Cable

DAYA electrical is a large-scale ACS Bare Conductor Cable manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.ACSR conductors are being used on transmission line networks for all climatic regions as per GOST 15150. The conductors are being manufactured as per GOST 839-80 requirements. ACSR is consisting of steel and aluminum wires. The installation of the conductor has to be done as per PUE requirements. Maximum continous permissible temperature of the conductor should not exceed 90 C.

acsr Standard:

Our products are produced according to the standards of GB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, and so on.Meanwhile we can produce based on customers' requirements and specifications.

acsr Certificate:

The company has passed ISO90012008 quality certification, CCC China Compulsory Certification, National ElectricalProduct Safety Certification, State Construction and ProjectCommitee Recommended Manufacturer of the Transformationof Urban and Rural Power Grid Construction.

ACSR Conductor Standards

* ASTM B-232 * BS EN-50182

* CSAC 61089 * AS/NZS 3607

* DIN 48204 * IEC 61089

* GB/T 1179 * ASTM B711

ACSR Conductor Application

ACSR conductors have been widely used in power transmission lines with various voltage levels, because they have such good

characteristics as simple structure, convenient insulation and maintenance, low cost large transmission capacity. And they are

also suitable for laying across rivers valleys and the places where special geographical features exist.

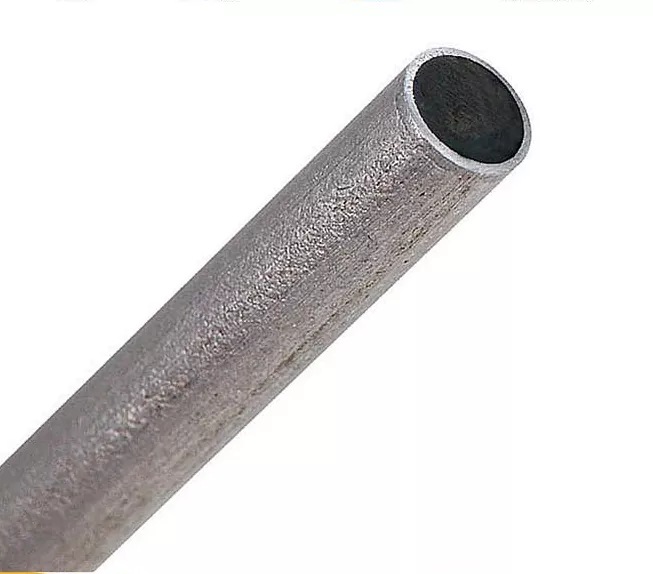

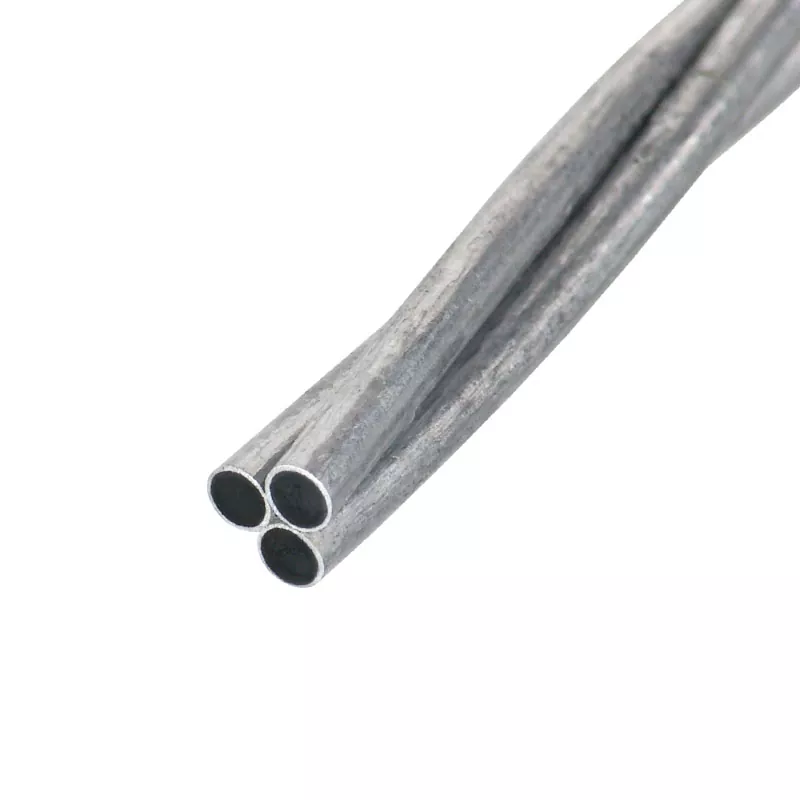

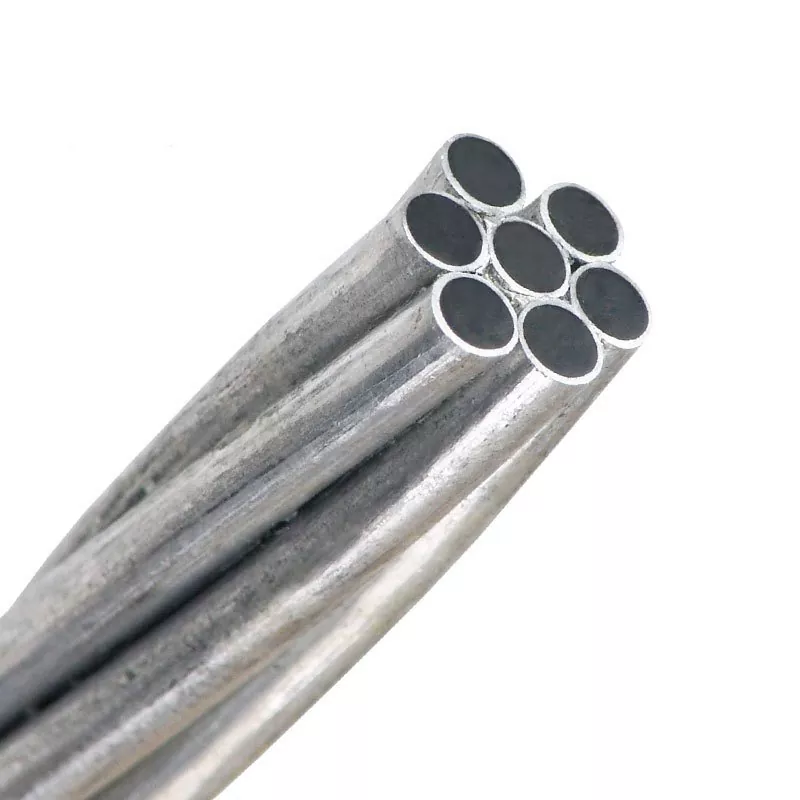

DAYA ACS Bare Conductor Cable Details

DAYA ACS Bare Conductor Cable Working conditions

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA ACS Bare Conductor Cable Parameter (Specification)

ALUMOWELD STRANDASTMB-416
NUMBER& SIZEOFWIRES	NOMINAL WIRE DIAMETER		NOMINALSTRANDDIAMETER		BREAKING LOAD		WEIGHT		RESISTANCE		CROSSSECTION
AWG	IN	MM	IN	MM	LB	KG	LB/1000 FT	KG/ KM	OHMS/1000 FT@68ºF	OHMS/ KM@20ºC	SQIN	MM2
37No.6	0.1620	4.115	1.130	28.80	120,200	54,500	2222.00	3307.0	0.05356	0.1757	0.76264	492.20
37No.7	0.1443	3.665	1.010	25.70	100,700	45,690	1762.00	2623.0	0.06754	0.2216	0.60509	390.30
37No.8	0.1285	3.264	0.899	22.90	84,200	38,190	1398.00	2080.0	0.08516	0.2794	0.47984	309.50
37No.9	0.1144	2.906	0.801	20.30	66,770	30,290	1108.00	1649.0	0.10740	0.3523	0.38032	245.50
37No.10	0.1019	2.588	0.713	17.90	52,950	24,020	879.00	1308.0	0.13540	0.4443	0.30174	194.70
19No.5	0.1819	4.620	0.910	23.10	73,350	33,270	1430.00	2129.0	0.08224	0.2698	0.49438	318.70
19No.6	0.1620	4.115	0.810	20.60	61,700	27,990	1134.00	1688.0	0.10370	0.3402	0.39163	252.70
19No.7	0.1443	3.665	0.721	18.30	51,730	23,460	899.50	1339.0	0.13080	0.4290	0.31073	200.40
19No.8	0.1285	3.264	0.642	16.30	43,240	19,610	713.50	1062.0	0.16490	0.5409	0.24641	158.90
19No.9	0.1144	2.906	0.572	14.50	34,290	15,550	565.80	842.0	0.20790	0.6821	0.19530	126.10
19No.10	0.1019	2.588	0.509	12.90	27,190	12,330	448.70	667.7	0.26220	0.8601	0.15495	99.96
7No.5	0.1819	4.620	0.546	13.90	27,030	12,260	524.90	781.1	0.22640	0.7426	0.18193	117.40
7No.6	0.1620	4.115	0.486	12.40	22,730	10,310	416.30	619.5	0.28030	0.9198	0.14435	93.10
7No.7	0.1443	3.665	0.433	11.00	19,060	8,645	330.00	491.1	0.35350	1.1600	0.11448	73.87
7No.8	0.1285	3.264	0.385	9.78	15,930	7,226	261.80	389.6	0.44580	1.4630	0.09077	58.56
7No.9	0.1144	2.906	0.343	8.71	12,630	5,729	207.60	308.9	0.56210	1.8440	0.07198	46.44
7No.10	0.1019	2.588	0.306	7.76	10,020	4,545	164.70	245.1	0.70880	2.3250	0.05708	36.83
7No.11	0.0907	2.304	0.272	6.91	7,945	3,604	130.60	194.4	0.89380	2.9320	0.04527	29.21
7No.12	0.0808	2.052	0.242	6.16	6,301	2,858	103.60	154.2	1.12700	3.6970	0.03590	23.16
3No.5	0.1819	4.620	0.392	9.96	12,230	5,547	224.50	334.1	0.51770	1.6990	0.07796	50.32
3No.6	0.1620	4.115	0.349	8.87	10,280	4,663	178.10	265.0	0.65280	2.1420	0.06185	39.90
3No.7	0.1443	3.665	0.311	7.90	8,621	3,910	141.20	210.1	0.82320	2.7010	0.04905	31.65
3No.8	0.1285	3.264	0.277	7.03	7,206	3,269	112.00	166.7	1.03800	3.4060	0.03890	25.10
3No.9	0.1144	2.906	0.247	6.26	5,715	2,592	88.81	132.2	1.30900	4.2940	0.03085	19.90
3No.10	0.1019	2.588	0.220	5.58	4,532	2,056	70.43	104.8	1.65100	5.4150	0.02446	15.78

ALUMOWELD STRANDASTMB-415
No.4	0.2043	5.189	115	109.0	5,081	2,305	93.63	139.3	1.222	4.009	0.03278	21.15
No.5	0.1819	4.620	165	116.0	4,290	1,946	74.25	110.5	1.541	5.056	0.02599	16.77
No.6	0.1620	4.115	175	123.0	3,608	1,637	58.88	87.6	1.943	6.375	0.02062	13.30
No.7	0.1443	3.665	185	130.1	3,025	1,372	46.69	69.5	2.450	8.038	0.01635	10.55
No.8	0.1285	3.264	195	137.1	2,529	1,147	37.03	55.1	3.089	10.130	0.01297	8.37
No.9	0.1144	2.906	195	137.1	2,005	909	29.37	43.7	3.896	12.780	0.01028	6.63
No.10	0.1019	2.588	195	137.1	1,590	721	23.29	34.7	4.912	16.120	0.00816	5.26
No.11	0.0907	2.304	195	137.1	1,261	572	18.47	27.5	6.194	20.320	0.00647	4.17
No.12	0.0808	2.052	195	137.1	1,000	454	14.65	21.8	7.811	25.630	0.00513	3.31

DAYA ACS Bare Conductor Cable Service

1. We guarantee to offer new advanced goods.

2. We'd like to send skilled personnel to the installing place to help offer technical consultant, quantity estimation and instruction, installing, preliminary testing,and help start up running; and to answer for any defect of the product found in installing and run testing, If there's something wrong with the product, we'll give our answer within 12 hours and get to the spot within 36 hours.

3.After installaton, We'll send skilled personnel to have the preliminary test and answer for any problems emerged. We take the whole charge of the fee needed in repairing,testing or retesting within the scope of our duty required in contract.

4.During the contract's period of validity,of the project must be started all over again or the goods can not be used at all which is resulted from our faulty goods and improper files or mistakes made by our instructors, we'll change the goods at once without compensation and take charge in all expenses of reinstallation.

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA Sf6 Circuit Breaker FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
