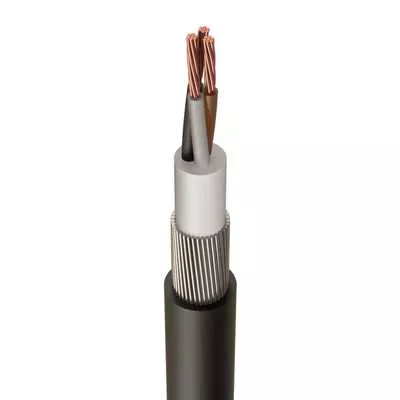

0.6/1 kV Multi-core cables wire armoured with copper conductor

DAYA electrical is a large-scale 0.6/1 kV Multi-core cables wire armoured with copper conductor manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. Single core and multi-core cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conform to IEC 60502.

Application

Southwire’s 15KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for cold bend. ST1 (low smoke) Rated for sizes 1/0 and larger. PVC jacket is made with SIM technology and has a coefficient of friction COF of 0.2. Cable can be installed in conduit without the aid of lubrication. Rated for 1000 lbs./FT maximum sidewall pressure.

DESCRIPTIO

Single core and multi-core cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conform to IEC 60502.

CONSTRUCTION

1 Conductor

Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.

2 Insulation

XLPE ( cross-linked polyethylene ) rated at 90 °C.

3 Colours for core identification

Single core - natural ( black on request )

Two core - red, black

Three core - red, yellow and blue

Four core - red, yellow, blue and black

Five core - red, yellow, blue, black and green/yellow

4 Assembly

Two, three, four or five insulated conductors are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

5 Sheath

PVC type ST2 to IEC 60502, colour black.

DAYA 0.6/1 kV Multi-core cables wire armoured with copper conductor Details

DAYA 0.6/1 kV Multi-core cables wire armoured with copper conductor Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap, 6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA 0.6/1 kV Multi-core cables wire armoured with copper conductor Parameter (Specification)

Nominal cross sectional area		ELECTRICALDATA							DIMENSIONS AND WEIGHTS		Cable Code
		Max.Conductor Resistance		Continuous Current Ratings					Approx. overall diameter	Approx. overall weight
		DC at 20 °C	AC at 70 °C	Laid in ground			Laid in ducts	Laid in free air
mm²		Ω / km	Ω / km	A			A	A	mm	kg / km
Two CoreCables
1.5	rm 12.1000 14.4777 27						20	23	13.5 365 C208PA1020WCB01IMR
2.5	rm	7.4100	8.8661	35			25	30	14.4 420 C210PA1020WCB01IMR
4	rm	4.6100	5.5159	46			34	40	16.3 535 C212PA1020WCB01IMR
6	rm	3.0800	3.6853	57			42	51	18.3 750 C213PA1020WCB01IMR
10	rm	1.8300	2.1898	75			56	68	19.5 870 C314PA1020WCB01IMR
16	rm	1.1500	1.3763	97			72	89	21.5 1095 C315PA1020WCB01IMR
25	rm	0.7270	0.8703	125			95	120	25.3 1605 C316PA1020WCB01IMR
35	rm	0.5240	0.6276	149			115	146	27.4 1910 C317PA1020WCB01IMR
Three Core Cables
1.5	rm 12.1000 14.4777 22					16		19	14.0 400 C208PA1030WCB04IMR
2.5	rm	7.4100	8.8661	29				25	15.0 470 C210PA1030WCB04IMR
4	rm	4.6100	5.5159	38		27		34	17.9 725 C212PA1030WCB04IMR
6	rm	3.0800	3.6853	47				42	19.2 840 C213PA1030WCB04IMR
10	rm	1.8300	2.1898	62		45		57	20.9 980 C314PA1030WCB04IMR
16	rm	1.1500	1.3763	80				75	23.1 1240 C315PA1030WCB04IMR
25	rm	0.7270	0.8703	104		78		101	27.1 1815 C316PA1030WCB04IMR
35	sm	0.5240	0.6276	115				110	26.4 2020 C417PA1030WCB04IMR
50	sm	0.3870	0.4639	137		106		134	30.2 2595 C418PA1030WCB04IMR
70	sm	0.2680	0.3220	167				168	34.5 3605 C419PA1030WCB04IMR
95	sm	0.1930	0.2328	200		159		205	38.7 4630 C445PA1030WCB04IMF
120	sm	0.1530	0.1856	226				235	40.6 5435 C446PA1030WCB04IMF
	Four					Core Cables
1.5	rm 12.1000 14.4777 22							19	14.9 450 C208PA1040WCB08IMR
2.5	rm	7.4100	8.8661	29		21		25	15.9 530 C210PA1040WCB08IMR
4	rm	4.6100	5.5159	38				34	19.1 820 C212PA1040WCB08IMR
6	rm	3.0800	3.6853	47		34		42	20.5 970 C213PA1040WCB08IMR
10	rm	1.8300	2.1898	62				57	22.4 1165 C314PA1040WCB08IMR
16	rm	1.1500	1.3763	80		59		75	25.5 1630 C315PA1040WCB08IMR
25	rm	0.7270	0.8703	104				101	29.3 2190 C316PA1040WCB08IMR
35	sm	0.5240	0.6276	115		88		110	29.9 2545 C417PA1040WCB08IMR
50	sm	0.3870	0.4639	137				134	35.5 3540 C418PA1040WCB08IMR
70	sm	0.2680	0.3220	167		131		168	39.1 4535 C419PA1040WCB08IMR
95	sm	0.1930	0.2328	200				205	44.0 6220 C445PA1040WCB08IMF
120	sm	0.1530	0.1856	226		180		235	47.8 7440 C446PA1040WCB08IMF
150	sm	0.1240	0.1514	252				268	52.5 8855 C447PA1040WCB08IMF
185	sm	0.0991	0.1224	283		232		306	57.9 10765 C448PA1040WCB08IMS
240	sm	0.0754	0.0952	325				358	64.2 13470 C449PA1040WCB08IMS
300	sm	0.0601	0.0780	362		303		406	70.3 16340 C450PA1040WCB08IMS
400	sm	0.0470	0.0638	402				465	80.6 21420 C451PA1040WCB08IMS
500	sm	0.0366	0.0531	442		379		521	88.3 26650 C452PA1040WCB08IMS
Four Core Cables with Reduced Neutral
25 rm	16rm 0.7270 / 1.1500 0.8703 / 1.3763 104					78		101	28.3 2065 C334PA1040WCB08IMR
35sm	16 rm 0.5240 / 1.1500 0.6276 / 1.3763				115			110	29.9 2385 C435PA1040WCB08IMR
50sm	25rm 0.3870 / 0.7270 0.4639 / 0.8703 137					106		134	35.5 3300 C436PA1040WCB08IMR
70sm	35sm 0.2680 / 0.5240 0.3220 / 0.6276				167			168	39.1 4135 C437PA1040WCB08IMR
95sm	50sm 0.1930 / 0.3870 0.2328 / 0.4639 200					159		205	44.0 5270 C438PA1040WCB08IMF
120sm	70sm 0.1530 / 0.2680 0.1856 / 0.3220				226			235	47.8 6860 C439PA1040WCB08IMF
150sm	70sm 0.1240 / 0.2680 0.1514 / 0.3220 252					205		268	52.5 7945 C440PA1040WCB08IMF
185sm	95sm 0.0991 / 0.1930 0.1224 / 0.2328				283			306	57.9 9625 C441PA1040WCB08IMF
240sm	120sm 0.0754 / 0.1530 0.0952 / 0.1856 325					269		358	64.2 12020 C442PA1040WCB08IMS
300sm	150sm 0.0601 / 0.1240 0.0780 / 0.1514				362			406	70.3 14575 C443PA1040WCB08IMS
400sm	185sm 0.0470 / 0.0991 0.0638 / 0.1224 402					342		465	80.6 19105 C444PA1040WCB08IMS
500sm	240sm 0.0366 / 0.0754 0.0531 / 0.0952				442			521	88.3 23670 C466PA1040WCB08IMS

DAYA 0.6/1 kV Multi-core cables wire armoured with copper conductor Service

Pre-sales

We provide technical support and complete power distribution solutions tailored to your needs. If the design drawings you provide are deemed unfeasible, we will optimize the plan and adjust it with the dimensions of the cabinet, the location of the equipment, and so on. We will also optimize the configuration of the products to make them meet your requirements.

After-Sales

If any problem occurs, we will first provide support by phone or email. We will perform a remote debug if necessary. Furthermore, our products come with a troubleshooting manual for reference when trying to find the fault and solve issues by yourself. Most problems can be solved by the above-mentioned methods. We will check in every year or so to acquire detailed information about your equipment to get a better understanding of the inner workings.

Our customer service promise

1. We will quickly solve the problem after receiving the issue report or repair request.

2. We then explain the cause of failure in detail and any fees will be charged according to market pricing.

3. If we take any parts back for inspecting, we will apply fragile notice stickers on them or write their serial number down to maintain the safety of the parts.

4. If your complaint is deemed valid, we will refund repair fees to you on-site.

DAYA 0.6/1 kV Multi-core cables wire armoured with copper conductor FAQ

1.Q: Are you a manufacturer or trader?

A:We are all, Main business of the company low-voltage switchgear, power distribution cabinet, explosion-proof cabinet design, production and system programming.

2.Q: Whether to support OEM/ODM?Can you design the equipment according to our size?

A: Of course, we can customize any product according to customer requirements, and we can provide design solutions and solutions.

3.Q: Why should I buy from you instead of someone else?

A: First of all, we can provide all customers with very professional support consisting of IT consultants and service teams.Secondly, our main engineers have more than 20 years of experience in power distribution equipment development.

4.Q:What about the delivery time?

A:Generally, our delivery time is around 7-15 days about. While, it depends on the requirement of customers and the

quantity of products.

5.Q:What about the shipment?

A:We can arrange shipment by DHL, FedEx, UPS,etc.of course, customers can also use their own freight forwarders.

6.Q:How about the terms of payment?

A:Supported T/T、Paypal、Apple Pay、Google Pay、Western Union,etc. Of course we can discuss on this.
