0.6/1 kV Multi-core cables tape armoured with copper conductor

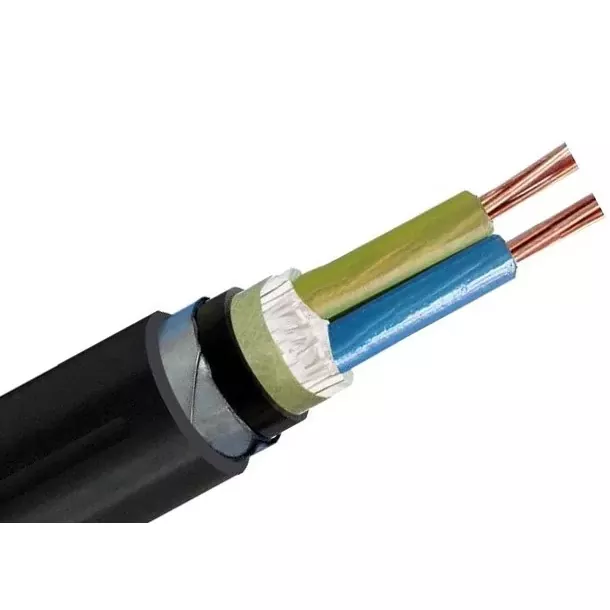

  • 0.6/1 kV Multi-core cables tape armoured with copper conductor - 0 0.6/1 kV Multi-core cables tape armoured with copper conductor - 0

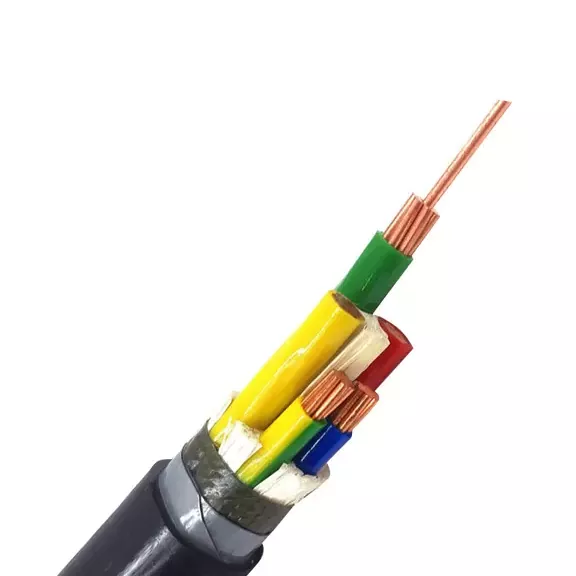

  • 0.6/1 kV Multi-core cables tape armoured with copper conductor - 1 0.6/1 kV Multi-core cables tape armoured with copper conductor - 1

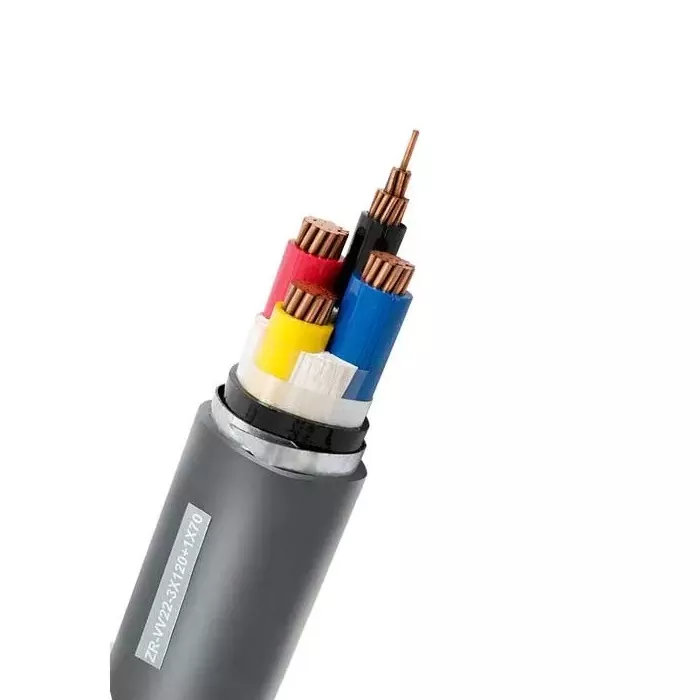

  • 0.6/1 kV Multi-core cables tape armoured with copper conductor - 2 0.6/1 kV Multi-core cables tape armoured with copper conductor - 2

0.6/1 kV Multi-core cables tape armoured with copper conductor

DAYA electrical is a large-scale 0.6/1 kV Multi-core cables tape armoured with copper conductor manufacturer and supplier in China. We have been specialized in High voltage equipment for many years. Our products have a good price advantage and cover most of the South America, Middle East, Africa, Southeast Asia markets. We look forward to becoming your long-term partner in China.Used as bare overhead transmission conductor and as primary and secondary distribution conductor and messenger support. Single core and multi-core cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conform to IEC 60502.

Send Inquiry

PDF DownLoad

Product Description

DESCRIPTIO

Single core and multi-core cables with copper or aluminium conductor, XLPE insulated and PVC sheathed. Cables are rated at 0.6 / 1 (1.2) kV and conform to IEC 60502.

CONSTRUCTION

1 Conductor

Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.

2 Insulation

XLPE ( cross-linked polyethylene ) rated at 90 °C.

3 Colours for core identification

Single core    - natural ( black on request )

Two core       - red, black

Three core    - red, yellow and blue

Four core       - red, yellow, blue and black

Five core       - red, yellow, blue, black and green/yellow

4 Assembly

Two, three, four or five  insulated conductors are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.

5 Sheath

PVC type ST2 to IEC 60502,  colour black.

DAYA  0.6/1 kV Multi-core cables tape armoured with copper conductor Details

DAYA  0.6/1 kV Multi-core cables tape armoured with copper conductor Working conditions

Specifications:

Size (AWG or KCM): 636.0

Stranding (AL/STL): 26/7

Diameter Inches: Aluminum: 0.1564

Diameter Inches: Steel: 0.1216

Diameter Inches: Steel Core: 0.3648

Diameter Inches: Cable OD: 0.990

Weight lb/1000FT: Aluminum: 499.

Weight lb/1000FT: Steel: 276.2

Weight lb/1000FT: Total: 874.1

Content %: Aluminum: 68.53

Content %: Steel: 31.47

Rate Breaking Strength (lbs.): 25,200

OHMS/1000ft: DC at 20ºC: 0.0267

OHMS/1000ft: AC at 75ºC: 0.033

Ampacity: 789 Amps

Packing:

--100m/Coil with Shrinking Film Wrap,  6 Coils per outer carton.

--100m/Spool, spool can be Paper, Plastic, or ABS, then 3-4 spools per carton,

--200m or 250m per Drum, two drums per carton,

--305m/Wooden Drum, one drum per outer carton or pallet loading,

--500m/Wooden Drum, one drum per outer carton or pallet loading,

--1000m or 3000m wooden drum, then pallet loading.

*We can also offer customized OEM packing according to clients' request.

Delivery:

Port: Tianjin, or other ports as per your requirements.

Sea freight: FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

DAYA 0.6/1 kV Multi-core cables tape armoured with copper conductor     Parameter (Specification)

Nominal

cross

sectional

area

ELECTRICALDATA

DIMENSIONSANDWEIGHTS

Cable Code

Max.Conductor

Resistance

Continuous Current Ratings

Approx. overall   diameter

Approx. overall weight

DC at

20 °C

AC at

70 °C

Laid in ground

Laid in

ducts

Laid in free air

mm²

Ω / km

Ω / km

A

A

A

mm

kg / km



Two Core Cables

6                   rm                       3.0800                              3.6853                      56               41                49               16.6               495               C213PA1020GCB01IMR

10                  rm                       1.8300                              2.1898                      74               54                65               17.8               600               C314PA1020GCB01IMR

16                  rm                       1.1500                              1.3763                      95               71                86               19.8               785               C315PA1020GCB01IMR

25                  rm                       0.7270                             0.8703                     123              93               115              22.9              1095              C316PA1020GCB01IMR

35                  rm                       0.5240                             0.6276                     147             112              140              25.0              1365              C317PA1020GCB01IMR

Three Core Cables

6                   rm                       3.0800                              3.6853                      46               33                41               17.5               575               C213PA1030GCB04IMR

10                  rm                       1.8300                              2.1898                      61               44                55               19.2               685               C314PA1030GCB04IMR

16                  rm                       1.1500                              1.3763                      79               58                72               21.4               910               C315PA1030GCB04IMR

25                  rm                       0.7270                             0.8703                     102              75                97               24.7              1265              C316PA1030GCB04IMR

35                 sm                       0.5240                             0.6276                     114              86               106              24.0              1500              C417PA1030GCB04IMR

50                 sm                       0.3870                             0.4639                     135             103              130              27.6              1960              C418PA1030GCB04IMR

70                 sm                       0.2680                             0.3220                     165             128              162              31.1              2665              C419PA1030GCB04IMR

95                 sm                       0.1930                             0.2328                     199             157              202              36.7              3900               C445PA1030GCB04IMF

120                 sm                       0.1530                             0.1856                     225             178              231              38.6              4675               C446PA1030GCB04IMF

Four Core Cables

4                   rm                       4.6100                              5.5159                      37               27                32               17.4               560               C212PA1040GCB08IMR

6                   rm                       3.0800                              3.6853                      46               33                41               18.8               690               C213PA1040GCB08IMR

10                  rm                       1.8300                              2.1898                      61               44                55               20.7               840               C314PA1040GCB08IMR

16                  rm                       1.1500                              1.3763                      79               58                72               23.1              1115               C315PA1040GCB08IMR

25                  rm                       0.7270                             0.8703                     102              75                97               26.9              1590              C316PA1040GCB08IMR

35                 sm                       0.5240                             0.6276                     114              86               106              27.3              1925              C417PA1040GCB08IMR

50                 sm                       0.3870                             0.4639                     135             103              130              32.1              2580              C418PA1040GCB08IMR

70                 sm                       0.2680                             0.3220                     165             128              162              36.9              3790              C419PA1040GCB08IMR

95                 sm                       0.1930                             0.2328                     199             157              202              40.8              5000               C445PA1040GCB08IMF

120                 sm                       0.1530                             0.1856                     225             178              231              44.6              6105               C446PA1040GCB08IMF

150                 sm                       0.1240                             0.1514                     252             203              264              49.3              7420               C447PA1040GCB08IMF

185                 sm                       0.0991                             0.1224                     284             231              303              54.5              9130              C448PA1040GCB08IMS

240                 sm                       0.0754                             0.0952                     327             270              356              61.0             11655             C449PA1040GCB08IMS

300                 sm                       0.0601                             0.0780                     366             305              407              67.1             14370             C450PA1040GCB08IMS

400                 sm                       0.0470                             0.0638                     414             350              471              76.1             18245             C451PA1040GCB08IMS

500                 sm                       0.0366                             0.0531                     462             394              535              85.0             23960             C452PA1040GCB08IMS

Four Core Cables with Reduced Neutral

25rm           16rm              0.7270 / 1.1500              0.8703 / 1.3763             102              75                97               25.9              1485              C334PA1040GCB08IMR

35sm          16rm              0.5240 / 1.1500              0.6276 /1.3763              114              86               106              27.3              1770              C435PA1040GCB08IMR

50sm          25rm              0.3870 / 0.7270              0.4639 / 0.8703             135             103              130              31.5              2340              C436PA1040GCB08IMR

70sm          35sm              0.2680 / 0.5240              0.3220 / 0.6276             165             128              162              34.1              3110              C437PA1040GCB08IMR

95sm          50sm              0.1930 / 0.3870              0.2328 / 0.4639             199             157              202              39.1              4475               C438PA1040GCB08IMF

120sm        70sm              0.1530 / 0.2680              0.1856 / 0.3220             225             178              231              42.9              5565               C439PA1040GCB08IMF

150sm        70sm              0.1240 / 0.2680              0.1514 / 0.3220             252             203              264              46.9              6565               C440PA1040GCB08IMF

185sm        95sm              0.0991 / 0.1930              0.1224 / 0.2328             284             231              303              51.6              8100               C441PA1040GCB08IMF

240sm       120sm             0.0754 / 0.1530              0.0952 / 0.1856             327             270              356              58.0             10295             C442PA1040GCB08IMS

300sm       150sm             0.0601 / 0.1240              0.0780 / 0.1514             366             305              407              63.8             12680             C443PA1040GCB08IMS

400sm       185sm             0.0470 / 0.0991              0.0638 / 0.1224             414             350              471              72.1             16075             C444PA1040GCB08IMS

500sm       240sm             0.0366 / 0.0754              0.0531 / 0.0952             462             394              535              80.7             21085             C466PA1040GCB08IMS
